Compatible OEM Part Numbers

Technical Specifications

Product Description

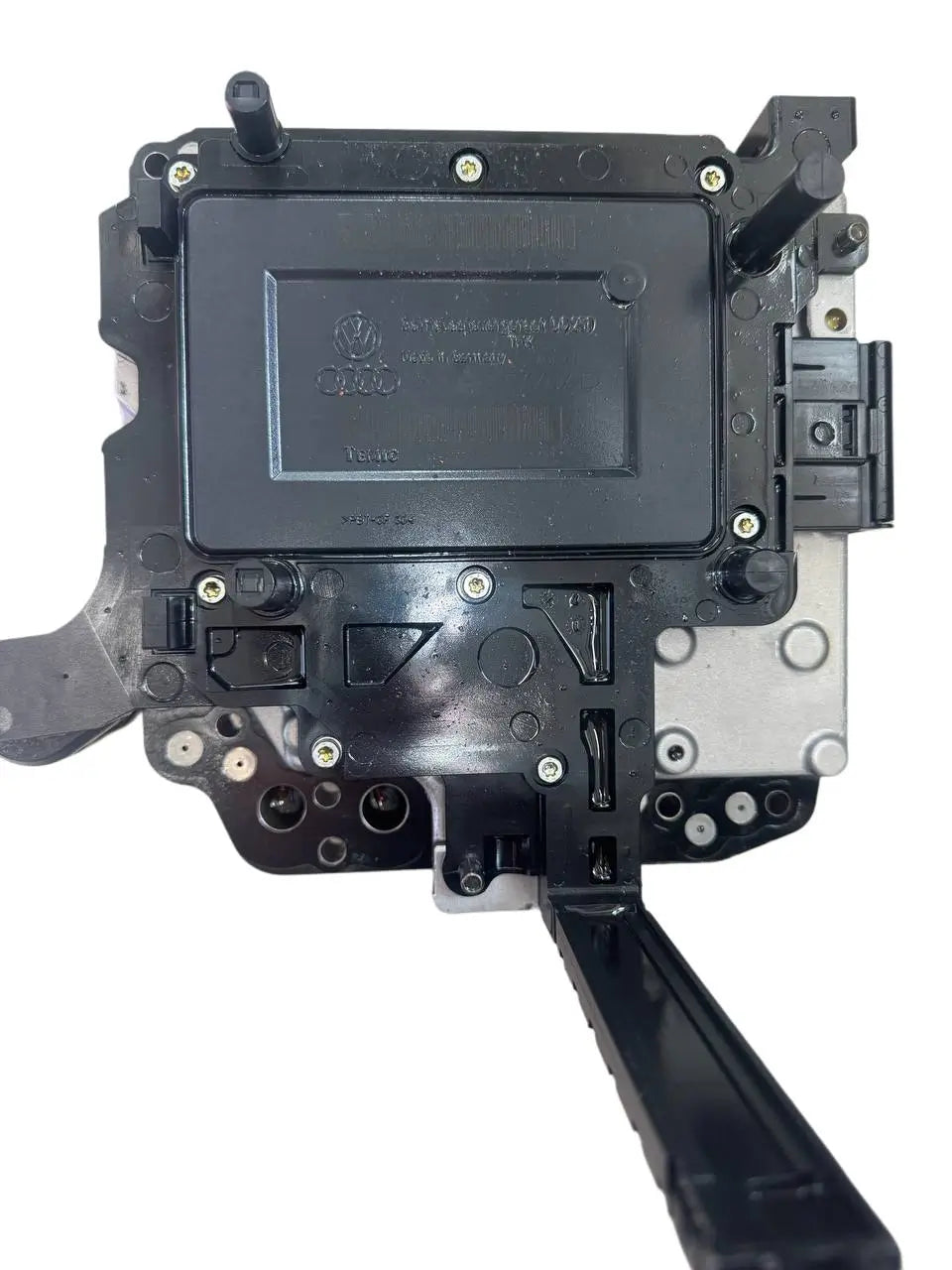

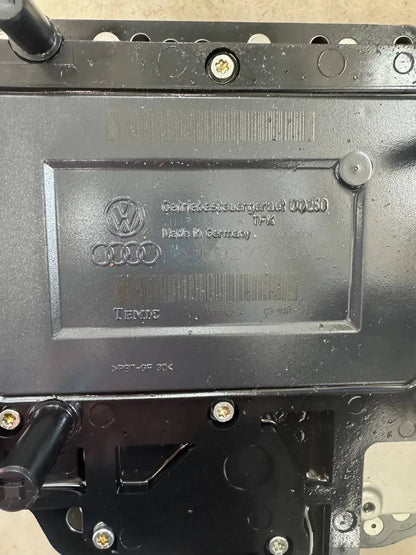

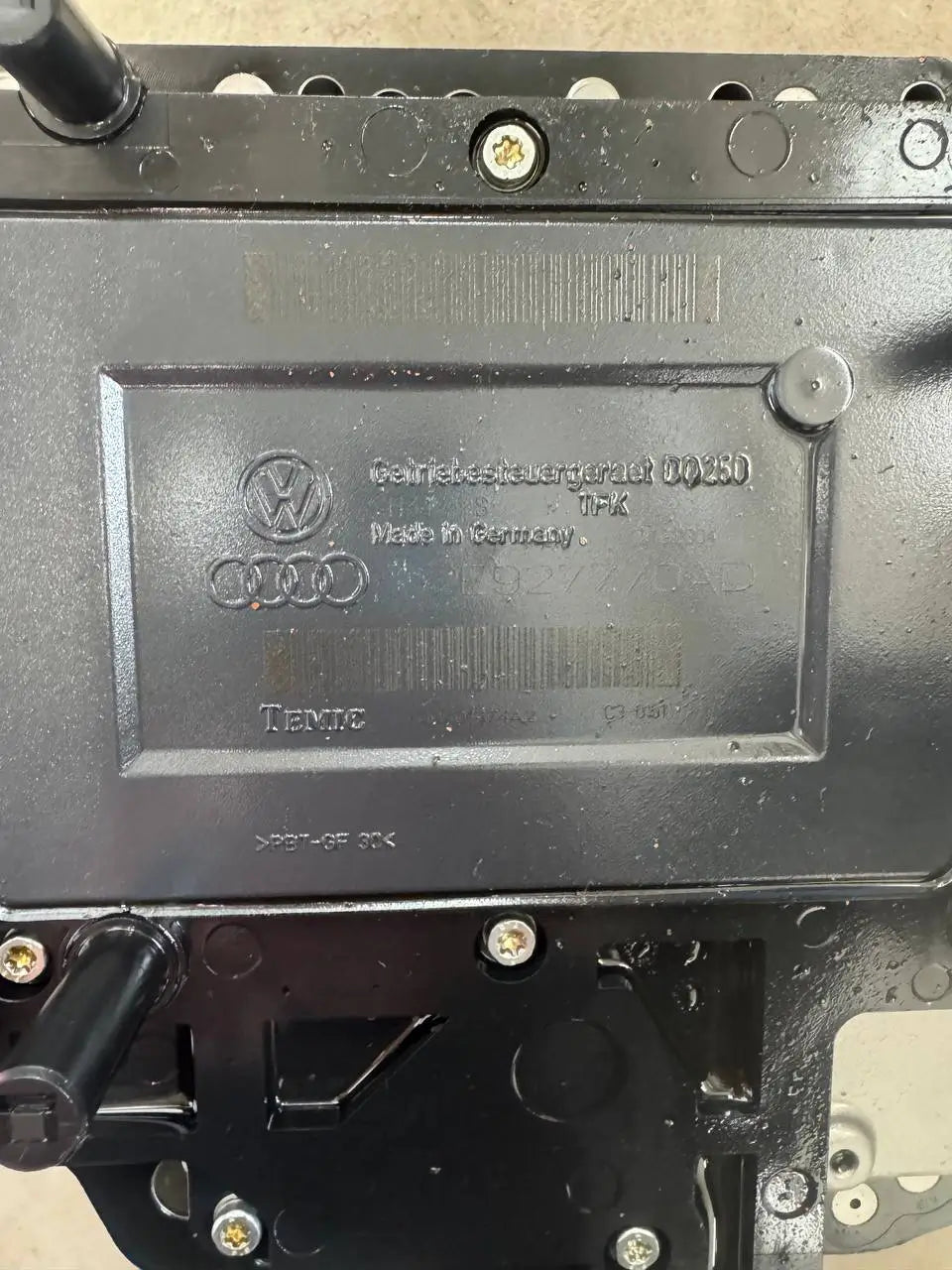

This genuine used component is a complete mechatronics assembly designed for the early 6-speed DSG DQ250 automatic transmission found in Volkswagen Group vehicles from 2003–2009. The system integrates both the transmission control unit (TCU) and hydraulic valve body with all necessary control solenoids and sensors into one assembly.

What This Complete Mechatronics System Includes

• Electronic control module (TCU) that processes all transmission data
• Integrated hydraulic valve body housing
• All shift control solenoids (N88, N89, N90, N91, N92)
• Pressure regulation valves (N215, N216, N233, N371)
• Speed sensors for input and output shaft monitoring
• Temperature monitoring system (G509)

The complete assembly manages all hydraulic and electronic operations necessary for transmission functionality. It controls gear selection patterns, clutch engagement sequences, hydraulic pressure distribution, and continuous sensor data monitoring. Every unit undergoes comprehensive functional testing before shipment to guarantee dependable performance.

Vehicle Compatibility

This first-generation mechatronics fits the following vehicle models equipped with 6-speed DSG DQ250 transmission (2003–2009):

Volkswagen

Audi

SEAT

Škoda

Common Diagnostic Fault Codes

If your vehicle displays any of these error codes, the mechatronics assembly may require replacement:

Installation & Programming

Installation Process

• Drain transmission fluid completely before removal
• Document electrical connector positions and wiring harness routing
• Remove the old mechatronics assembly carefully to avoid hydraulic valve body damage
• Clean mounting surface and inspect for metal contamination
• Install replacement unit with new seals and gaskets
• Torque all bolts to manufacturer specifications
• Refill with fresh DSG transmission fluid (approx. 5–6 litres)

Programming & Adaptation

This mechatronics assembly typically retains its original programming after installation. In most cases, no additional coding or adaptation procedures are required. However, some vehicles may need basic transmission adaptation reset using dealer-level diagnostic equipment (VCDS / ODIS).

Recommended Service

• Replace transmission fluid and filter during installation
• Inspect clutch packs for wear if high mileage
• Check for metal particles in old fluid (indicates internal wear)
• Clear all fault codes after installation
• Perform road test with diagnostic monitoring
• Reset DSG adaptations via VCDS (Module 02 – Auto Trans → Adaptation → Reset)

Professional Installation Recommended: Due to the complexity of DSG systems and the need for specialised diagnostic tools, we strongly recommend having this component installed by a qualified automotive technician or authorised service centre.

Why DSG Mechatronics Units Fail

1. Electronic Component Degradation

Over time, circuit boards, capacitors, and electronic components within the control unit can deteriorate due to heat cycles, vibration, and electrical stress. This leads to intermittent signals or complete communication loss.

2. Solenoid Valve Failures

The hydraulic solenoids (N88, N89, N90, N91, N92) control clutch engagement and gear selection. These valves can develop internal short circuits, open circuits, or mechanical sticking, causing harsh shifts or inability to change gears.

3. Contaminated Transmission Fluid

Metal particles, debris, or degraded fluid can clog small hydraulic passages in the valve body. This restricts proper hydraulic pressure distribution and damages sensitive solenoid components.

4. Pressure Sensor Malfunction

Speed sensors and pressure sensors provide critical data to the control unit. When these sensors fail or provide incorrect readings, the transmission cannot properly regulate shift points and hydraulic pressure.

5. Thermal Overload

Aggressive driving, towing, or repeated clutch slip conditions generate excessive heat. This thermal stress can damage electronic circuits, degrade solder joints, and cause premature solenoid failure.

6. Electrical Supply Issues

Voltage fluctuations, corroded connectors, or wiring harness damage can disrupt power supply to the mechatronics. This causes erratic transmission behaviour and triggers multiple fault codes.

Quality Assurance & Warranty

12-Month Warranty: All used mechatronics units are thoroughly tested and come with a comprehensive 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Warranty Coverage Includes:

• Electronic control unit failures
• Solenoid valve malfunctions
• Hydraulic pressure regulation defects
• Sensor failures within the assembly

Warranty Exclusions: Damage caused by improper installation, contaminated transmission fluid, external electrical faults, vehicle accidents, or modifications to the transmission system.

Need Assistance?

Our technical support team is ready to help with compatibility verification, installation guidance, and VIN programming services.

Important Purchase Information
