Transmission Type
6-Speed DSG DQ250 (02E)
Condition
Used – Fully Functional
Manufacturer
Temic (Original OEM)
Warranty
12 Months
✓ Tested & Verified Working Unit
Each mechatronics unit is individually tested prior to dispatch to verify hydraulic performance, solenoid operation and electronic control functions. Fully operational and ready for professional installation.
OEM Part Numbers
OEM Reference Numbers:

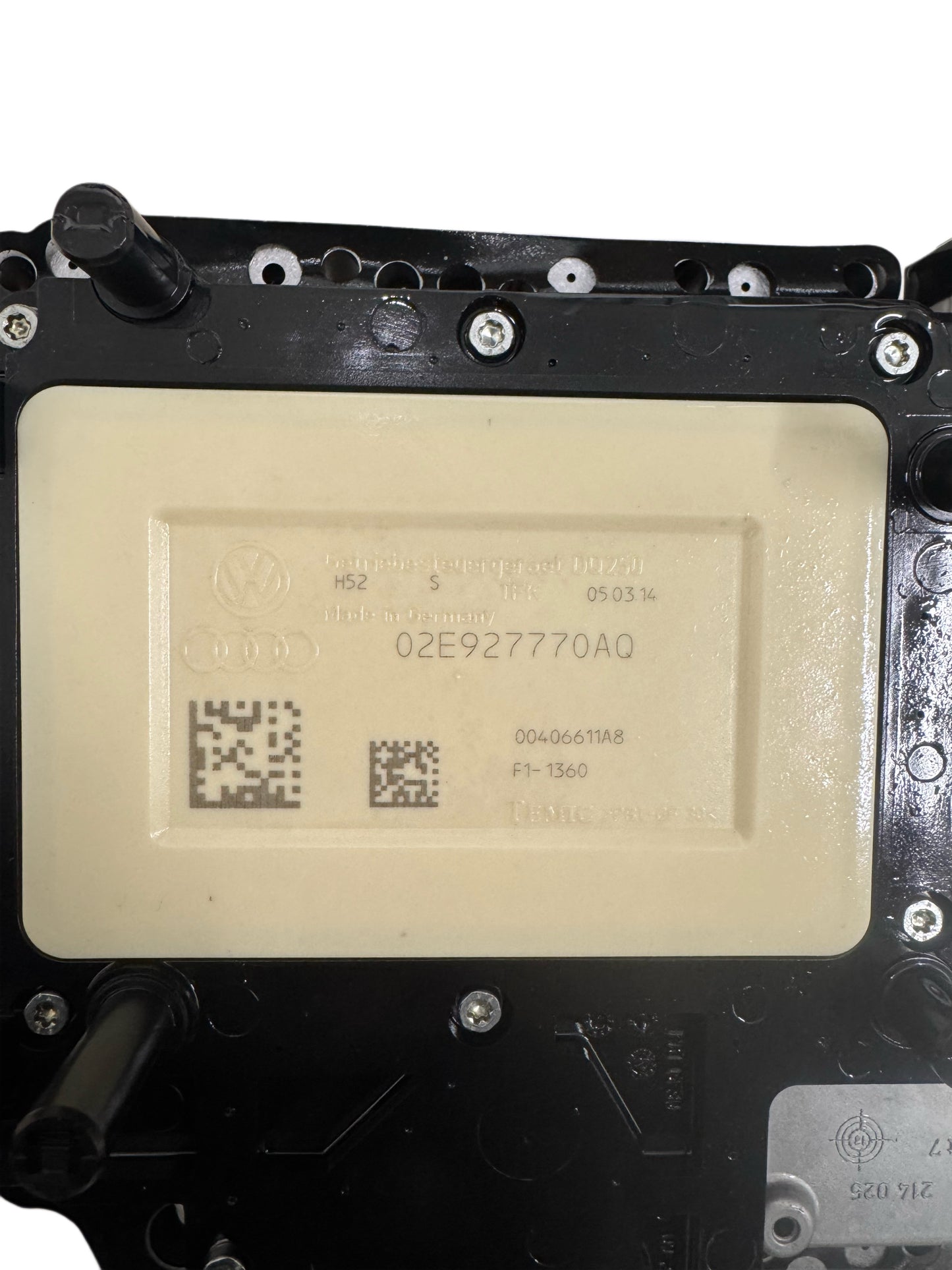

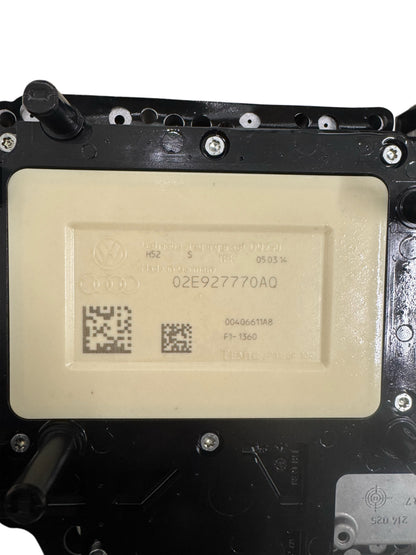

02E927770AQ • 02E 927 770 AQ
Also Compatible With:
02E927770AS • 02E927770AL • 02E927770AN • 02E927770AO
⚠️ Always Verify Your Part Number
Before placing an order, check the part number printed on your existing mechatronics unit and confirm it matches one of the reference numbers listed above. If you are unsure, contact us – we are happy to assist.
Technical Specifications
Transmission Type:
6-Speed DSG DQ250 (02E)
Component:
Complete Mechatronics – Hydraulic Block, Valve Body, Sensors & Solenoids
Application:
VAG Group – VW, Audi, Škoda, SEAT
Part Condition:
Used – Tested & Verified Working
Warranty Period:
12 Months
Product Description

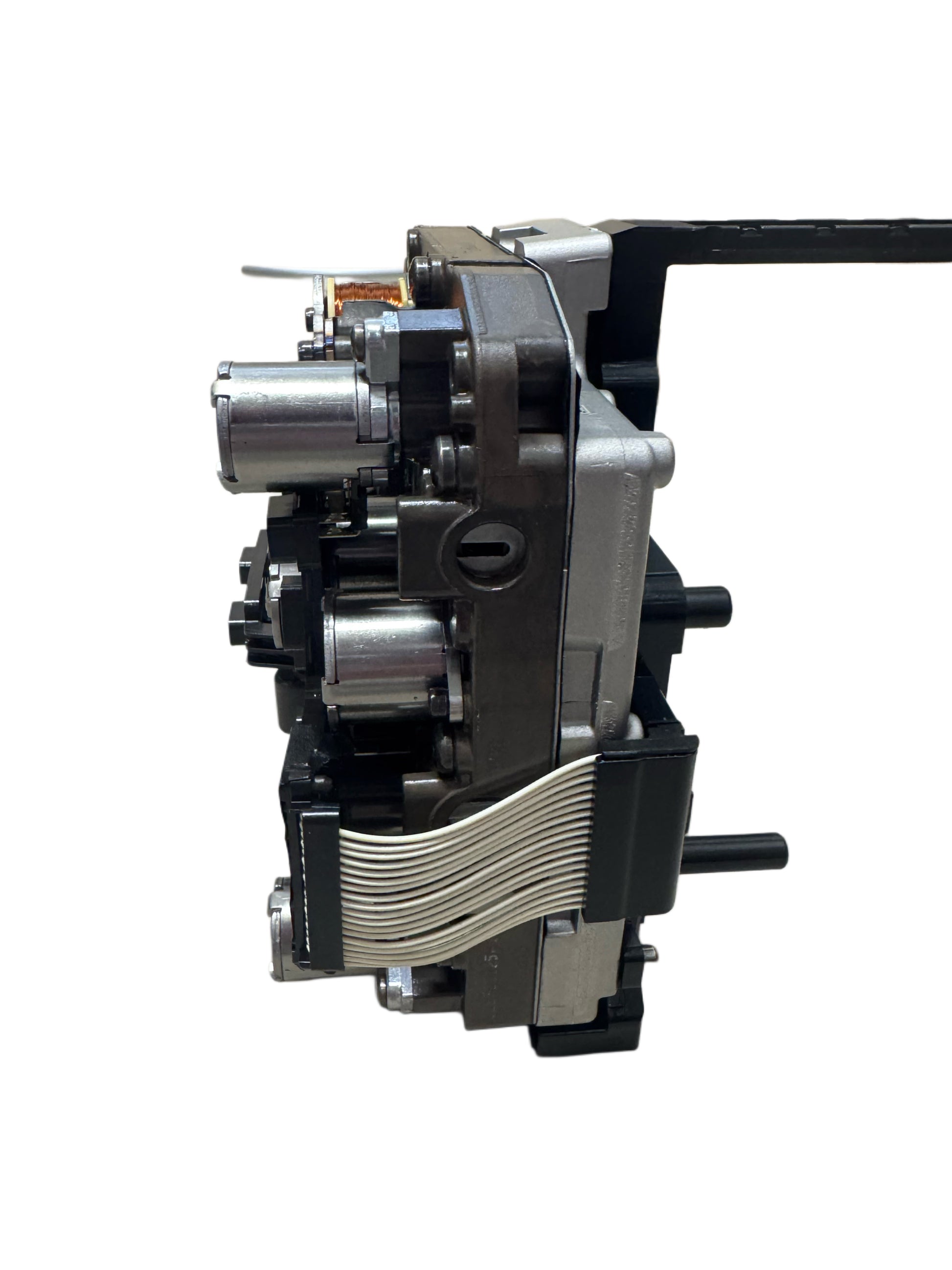

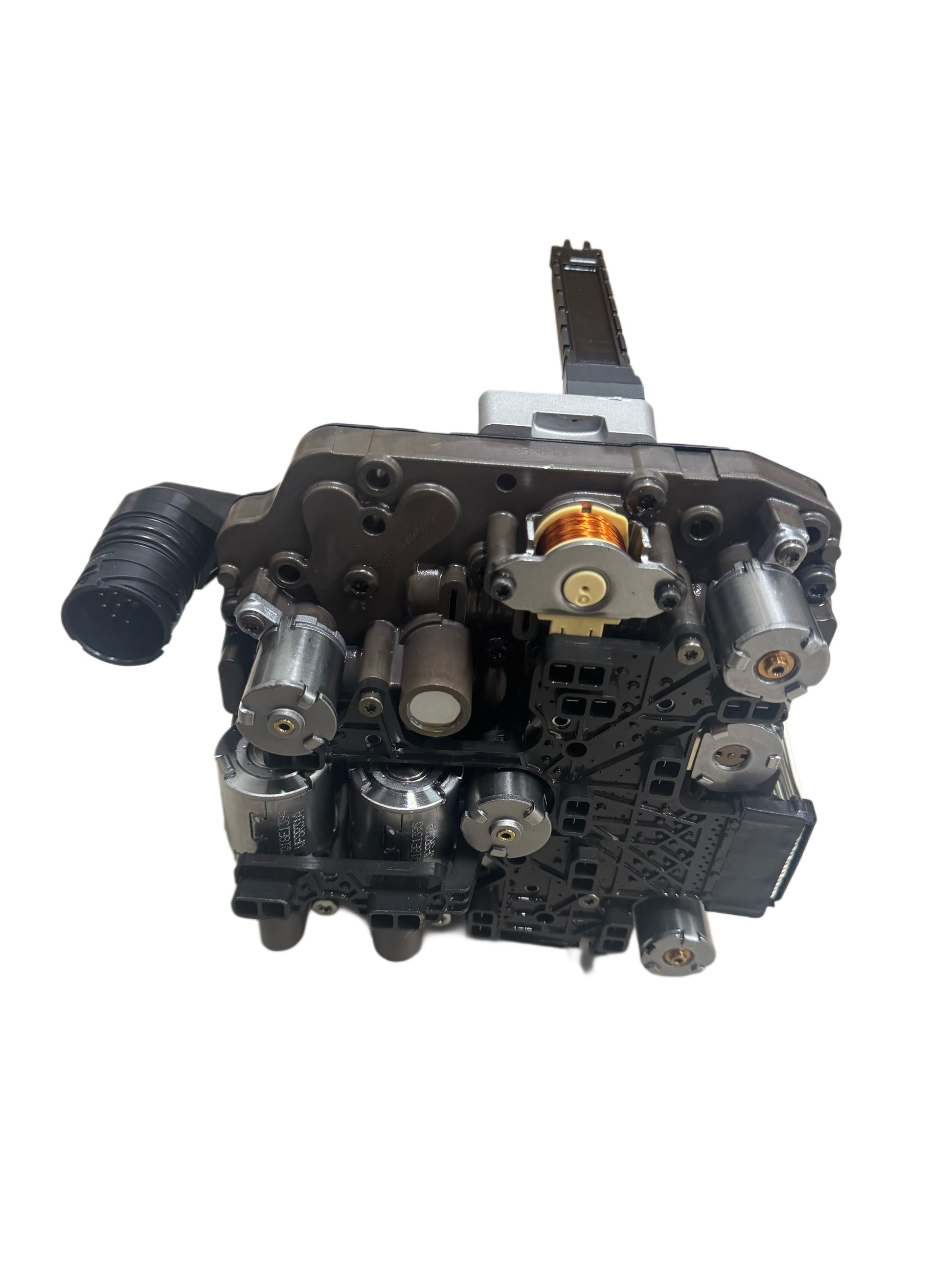

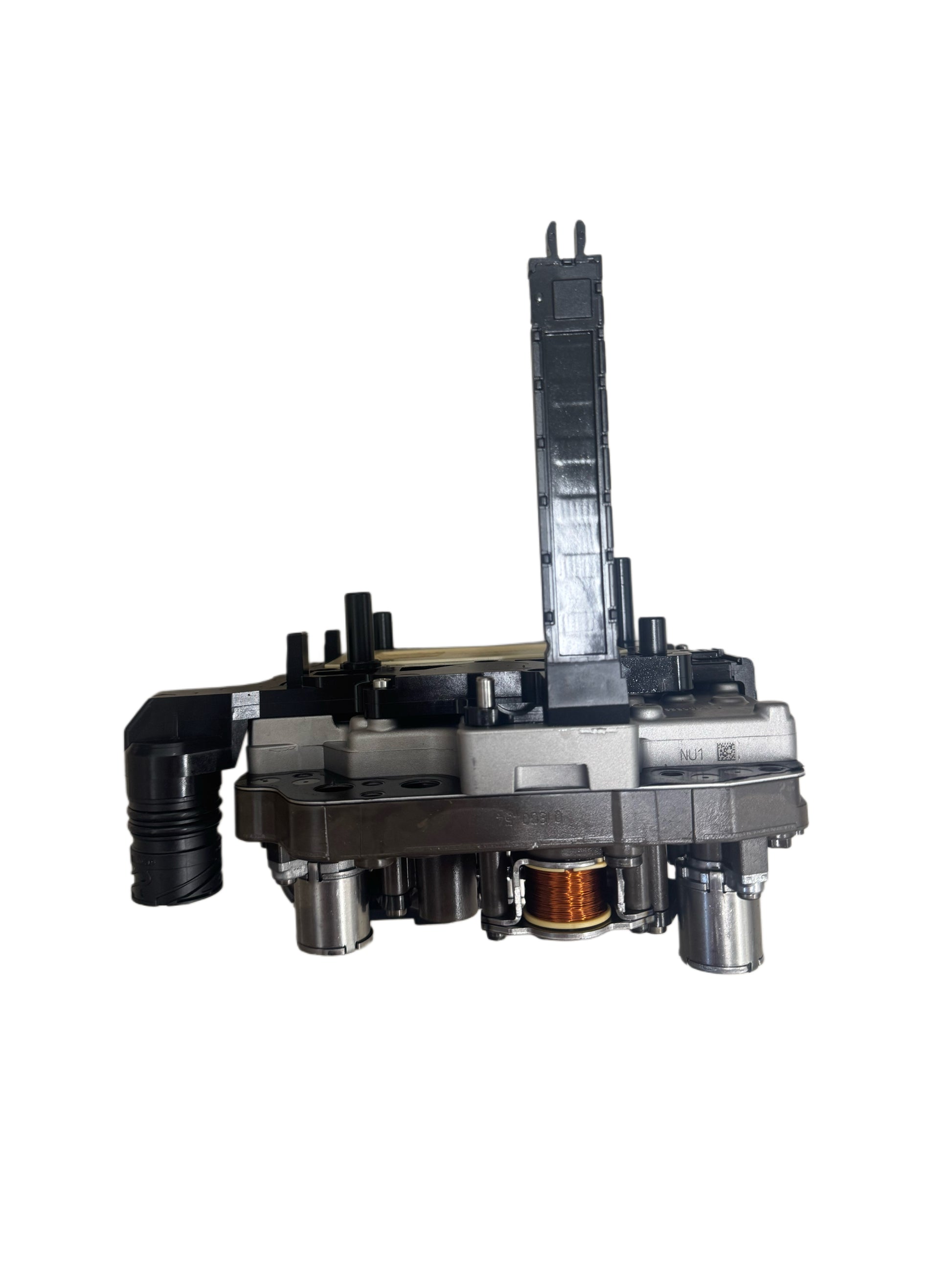

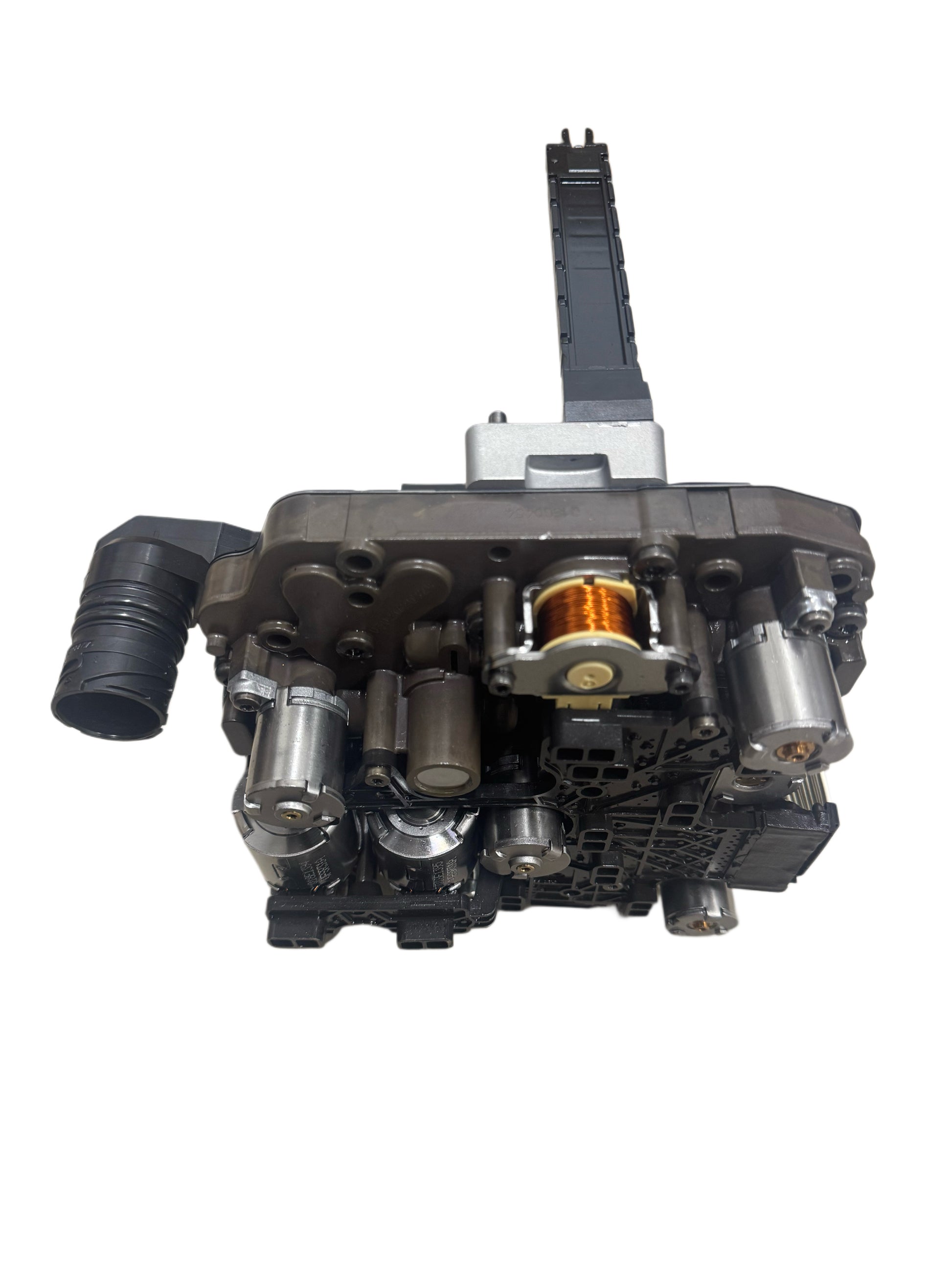

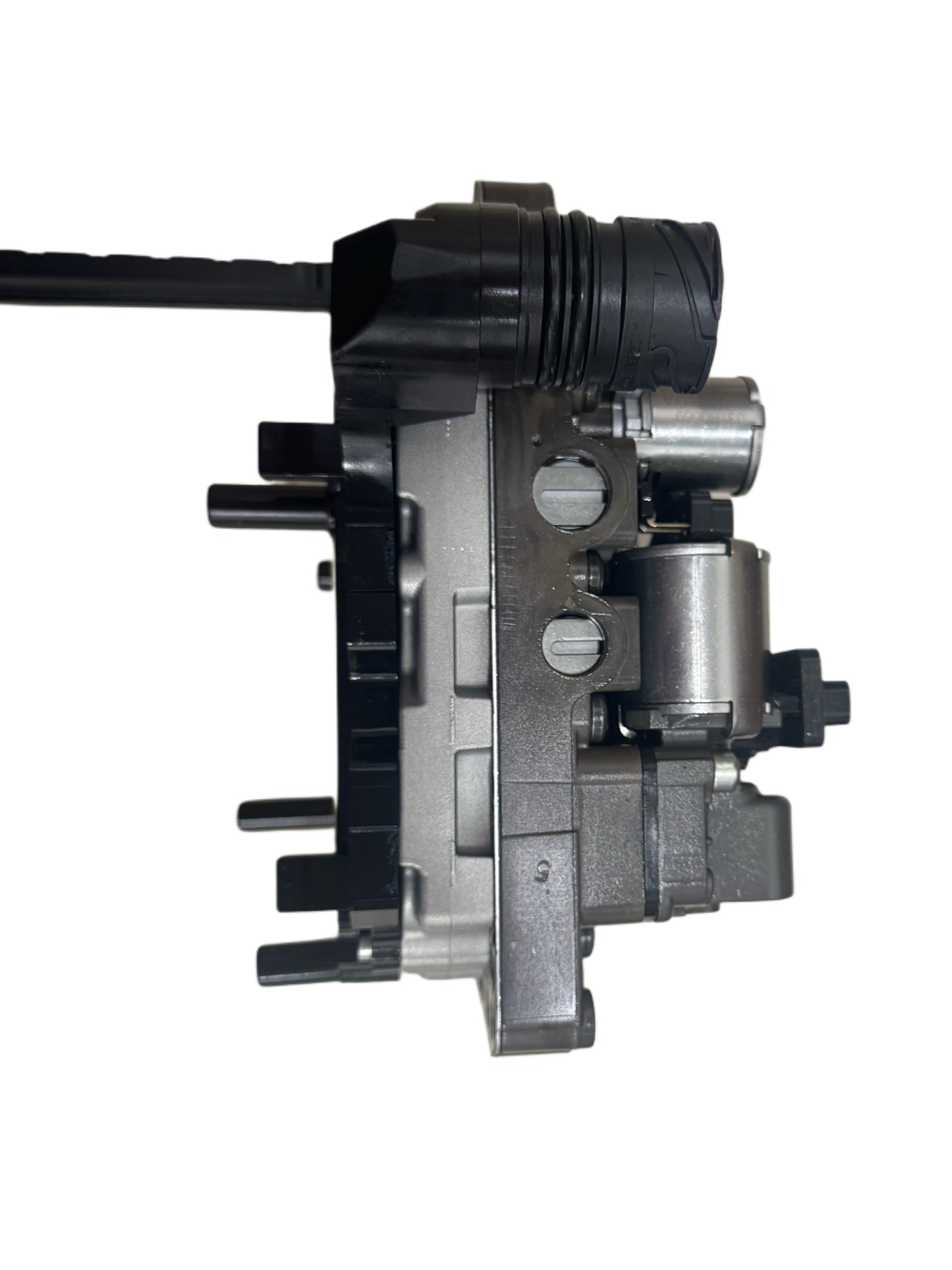

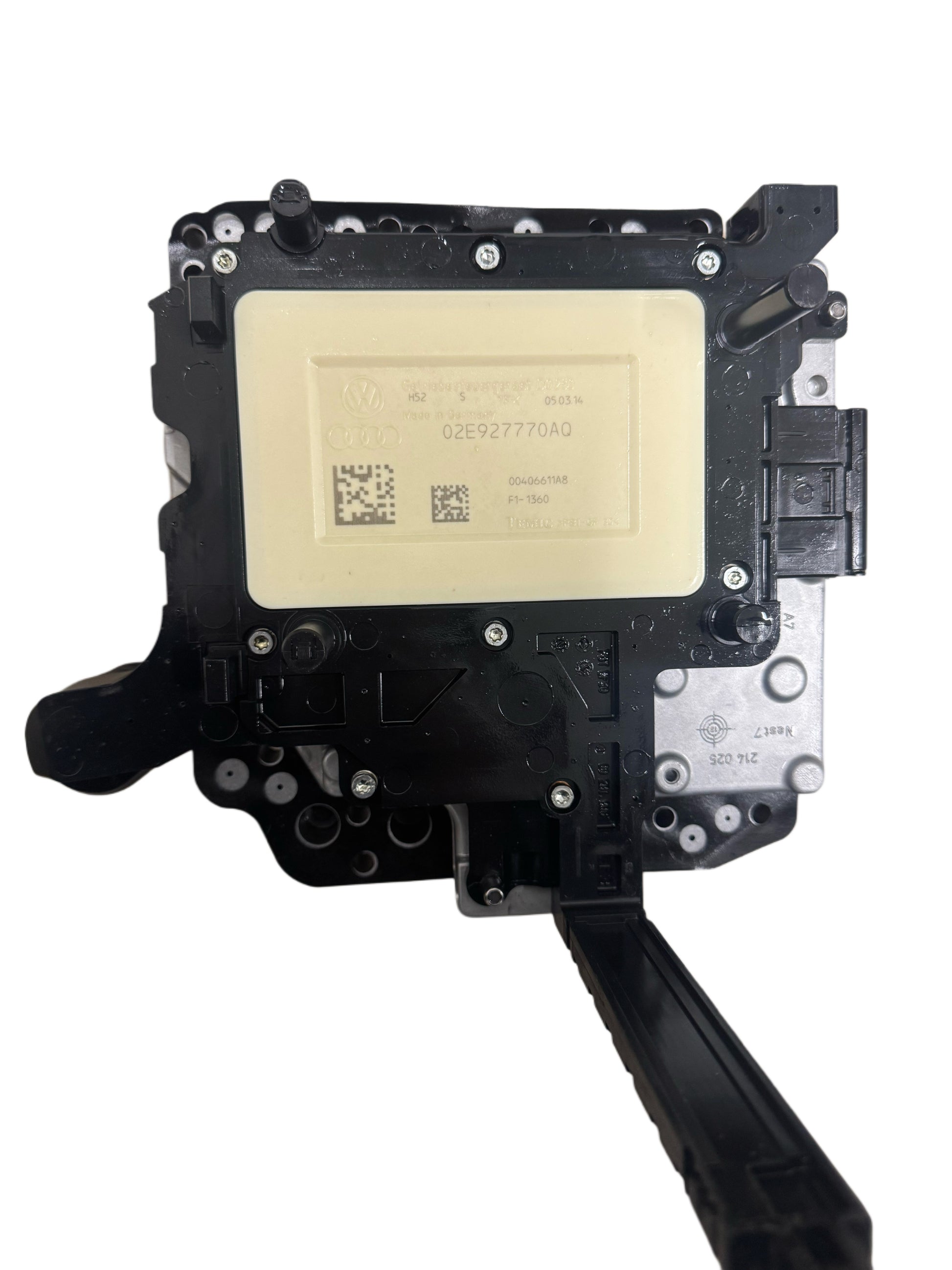

This is a genuine used original Temic mechatronics unit with part number 02E927770AQ for the 6-speed DSG DQ250 (02E) automatic transmission. The mechatronics assembly integrates the hydraulic control block, valve body, pressure sensors, gear-position sensors and solenoid valves into a single unit that manages all gear selection and hydraulic pressure regulation within the DQ250 gearbox.
What This Mechatronics Unit Does
- Controls hydraulic pressure for clutch engagement and gear shifting
- Manages solenoid valves responsible for selecting individual gears
- Monitors input and output shaft speeds for precise shift timing
- Regulates dual-clutch operation for smooth, fast gear transitions
- Communicates with the engine control unit and ABS/ESP modules
- Stores and executes learned adaptation values for optimised shift quality
🔧 Free Software Upload!
We can upload software to the DSG mechatronics for your car according to the VIN number. Please write the VIN number to us in the order notes, or send it to the email:
[email protected]
Vehicle Compatibility
The 02E927770AQ is designed for vehicles equipped with the DQ250 (02E) 6-speed DSG transmission. Always verify the part number on your existing unit:
Volkswagen
- Golf
- Caddy
- Sharan
- Touran
- Tiguan
- Beetle
- Passat
Škoda
Audi
SEAT
- Leon
- Altea
- Alhambra
- Toledo
✓ Not Sure About Compatibility?
If you are unsure whether this unit fits your vehicle, send us your VIN number or the part number from your existing mechatronics unit. We will confirm compatibility before you order.
Common Diagnostic Fault Codes
A faulty DQ250 mechatronics unit commonly triggers one or more of the following fault codes:
-
P0700 – Transmission Control System Malfunction
-
P0716 – Input Shaft Speed Sensor: Invalid Signal
-
P0722 – Output Shaft Speed Sensor: No Signal
-
P0746 – Pressure Regulator Valve 1: Short Circuit
-
P0751 – Shift Solenoid A: Performance / Stuck Off
-
P0756 – Shift Solenoid B: Performance / Stuck Off
-
P0761 – Shift Solenoid C: Performance / Stuck Off
-
P0766 – Shift Solenoid D: Performance / Stuck Off
-
P1740 – Clutch Temperature Monitoring
-
P1746 – Solenoid Power Supply Fault
-
P2723 – Pressure Regulator Valve 5: Short Circuit
-
P2767 – Input Speed Sensor: No Signal
ℹ️ Diagnostic Tip
A VAG-compatible diagnostic tool (VCDS, ODIS, VCP) is required to read DSG transmission fault codes. After mechatronics replacement, all stored fault codes must be cleared and a full adaptation reset performed using VCDS or ODIS.
Installation & Calibration
Installation Steps
- Drain DSG transmission fluid before removing the mechatronics unit
- Disconnect all electrical connectors and wiring harness from the unit
- Remove the mechatronics assembly from the transmission housing
- Clean the mating surfaces before fitting the replacement unit
- Install the new mechatronics and secure all fasteners to correct torque
- Reconnect all electrical connectors and refill with fresh DSG fluid
- Connect a VAG-compatible diagnostic tool and perform adaptation reset
- Carry out a full test drive and verify smooth gear changes across all gears
⚠️ Professional Installation Required
The mechatronics unit must be professionally installed and calibrated. Please ensure your service centre is equipped to perform DSG adaptation and calibration procedures. Incorrect installation or failure to reset adaptations may prevent the transmission from operating correctly.
✓ Online Technical Support Included
If you need guidance with software upload, adaptation or installation, our technical team is available to help. Reach us via the contact button below or at
[email protected].
Why DSG Mechatronics Units Fail
1. Contaminated DSG Fluid
Old or degraded DSG fluid is the most common cause of mechatronics failure. Contaminated fluid blocks the fine hydraulic passages and solenoid valves inside the unit, leading to erratic shifting, slipping and complete transmission failure.
2. Solenoid Valve Wear
Individual solenoid valves within the mechatronics control hydraulic pressure for each gear. Over time these valves wear internally, causing pressure leaks that result in harsh gear changes, incorrect gear selection or loss of specific gears.
3. Electrical Connector Corrosion

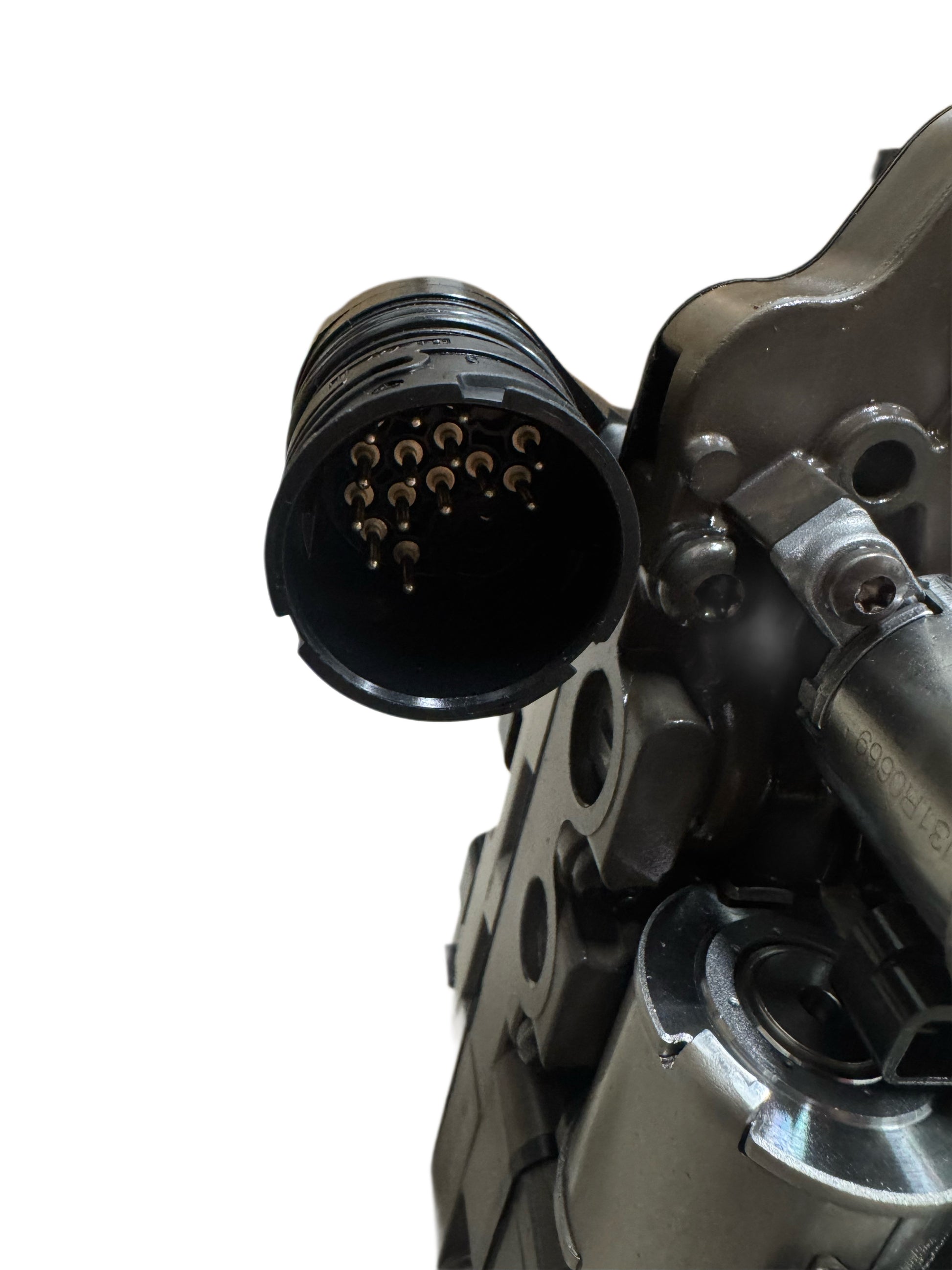

Moisture ingress at the mechatronics wiring connector causes pin corrosion and intermittent electrical faults. This often presents as random fault codes, jerky shifts or the transmission entering emergency (limp) mode.
4. Neglected Service Intervals
The DQ250 requires DSG fluid and filter changes at regular intervals. Skipping these services accelerates wear across all internal components, including the mechatronics unit, solenoid valves and clutch packs.
⚠️ Recommended Service Intervals
- Replace DSG fluid and filter every 60,000 km
- Use only approved DSG fluid for the DQ250 transmission
- Inspect the mechatronics connector and wiring harness at each service
- Scan transmission module for fault codes if any shifting issues are noticed
Quality Assurance & Warranty
12-Month Warranty: This used mechatronics unit has been fully tested and is covered by a 12-month warranty against functional defects under normal operating conditions.
Warranty Coverage Includes:
- Electronic control unit malfunctions
- Solenoid valve electrical faults
- Hydraulic pressure regulation failures
- Sensor signal faults within the mechatronics assembly
Warranty Exclusions: Damage resulting from incorrect installation, failure to perform adaptation reset, use of incorrect DSG fluid, incompatible vehicle fitment, or physical damage during handling.
Questions or Need Help?
Our technical team is ready to assist with compatibility checks, VIN software upload, installation guidance and adaptation support.
Contact Us
Important Purchase Information
- Please verify this part fits your specific vehicle before placing an order
- Photos are for illustrative purposes only – the actual unit may differ in appearance
- Worldwide shipping available (if your country is not listed at checkout, contact us for personal processing)
- Professional installation including calibration is required – ensure your service centre can perform DSG adaptation
- Free VIN software upload included – provide VIN in order notes or email [email protected]
