0AV598549A Haldex Pump Gen 2 New BorgWarner – VW group

0AV598549A Haldex Pump Gen 2 New BorgWarner – VW group

€149,90 EUR
€149,90 EUR
Sale Sold out
  • Warranty
  • Online Support
  • Express Shipping
0AV598549A Haldex Pump Gen 2 BorgWarner | New

0AV598549A Haldex Pump Gen 2 New BorgWarner

Part Number: 0AV598549A

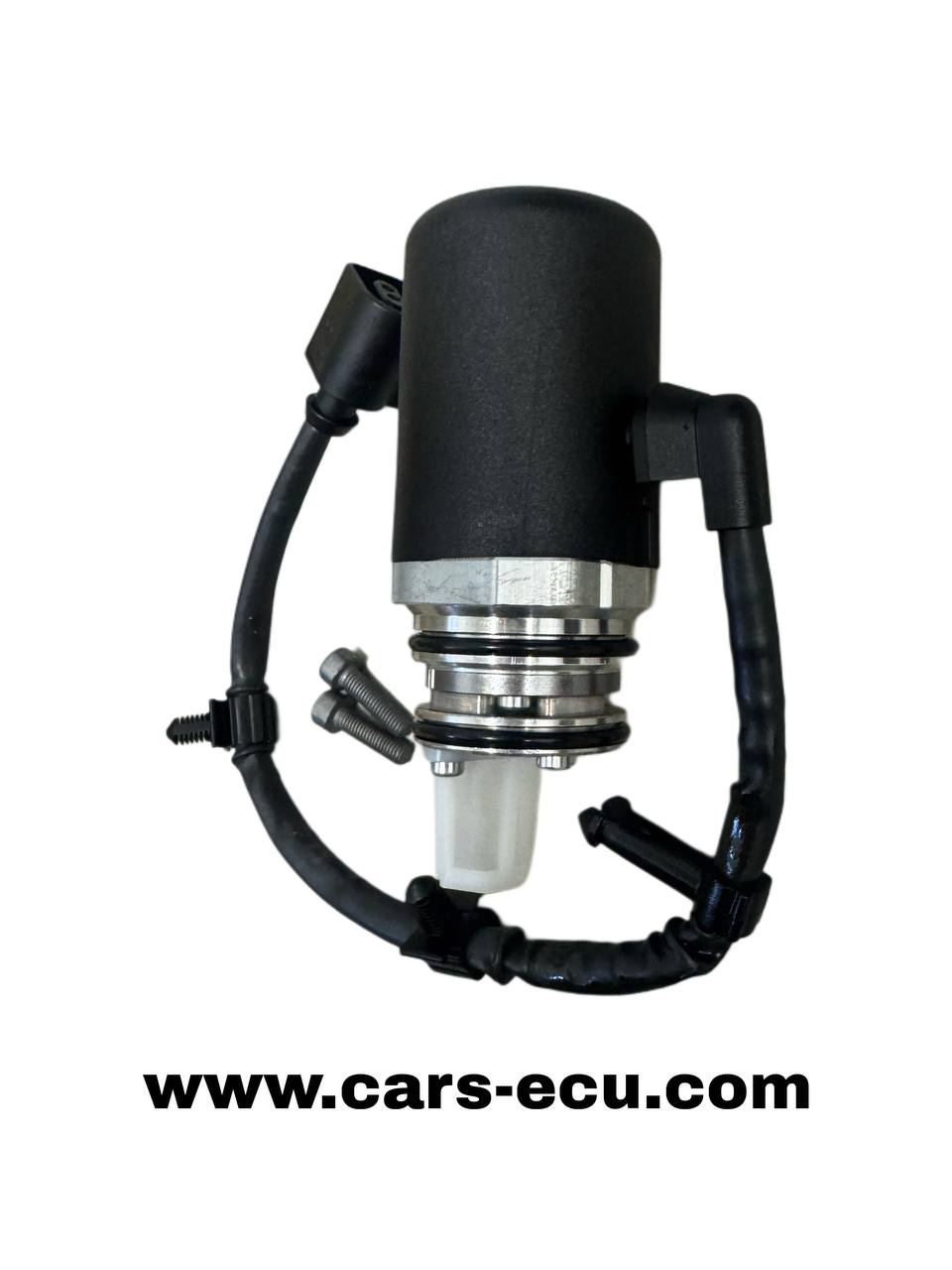

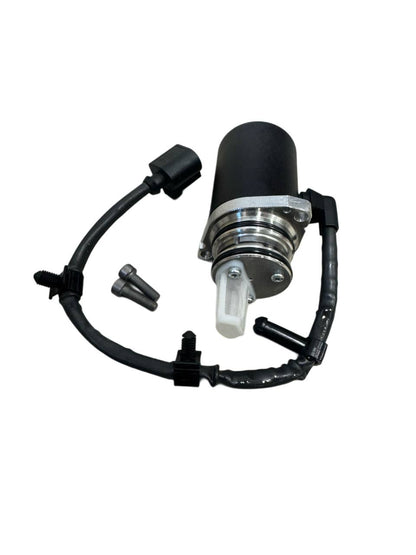

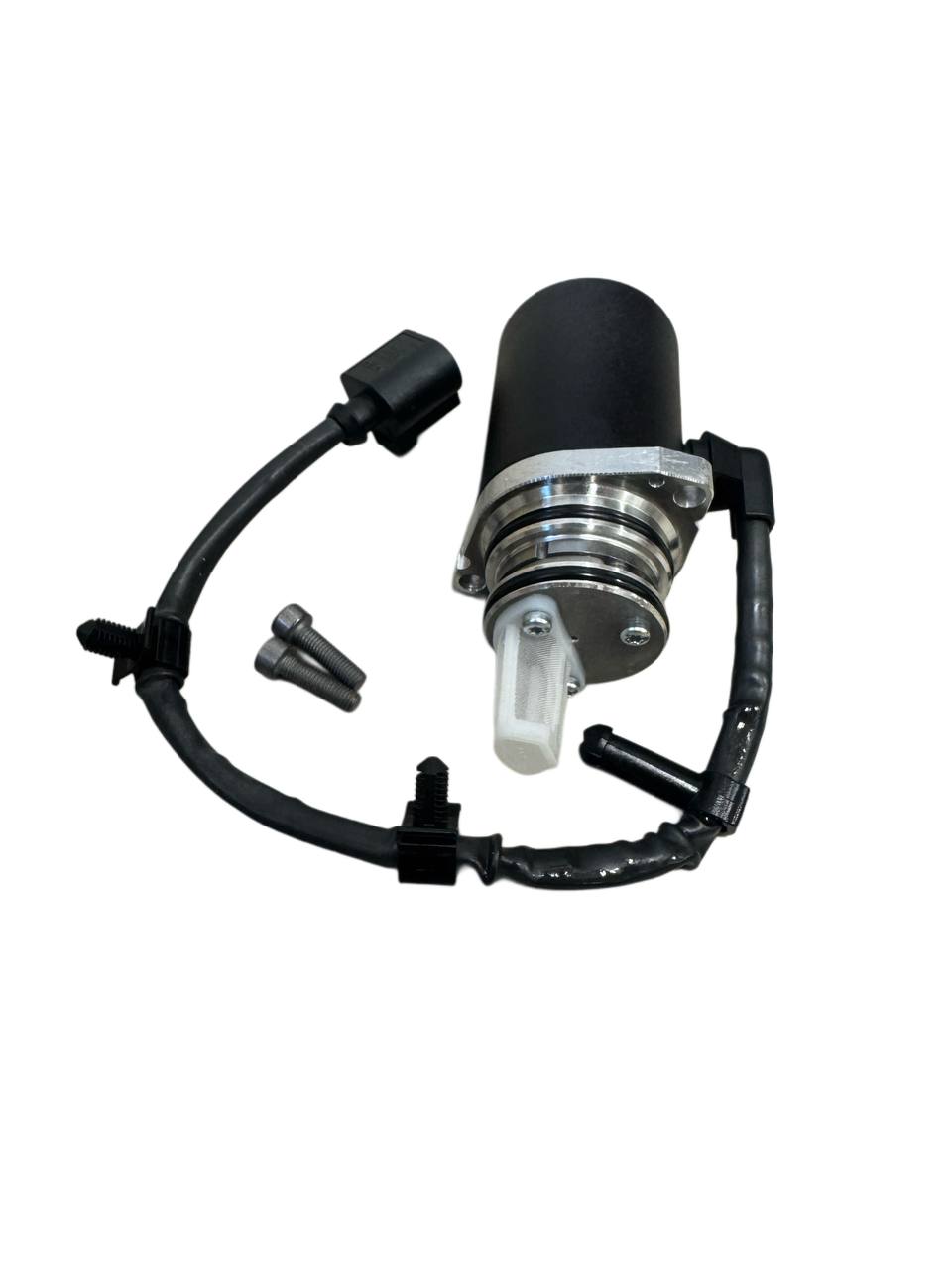

New original BorgWarner hydraulic pump for 2nd generation Haldex AWD systems in Volkswagen Group vehicles

System Type Haldex AWD 2nd Generation
Condition New Fully Functional
Manufacturer BorgWarner
Component Pre-Charge Pump

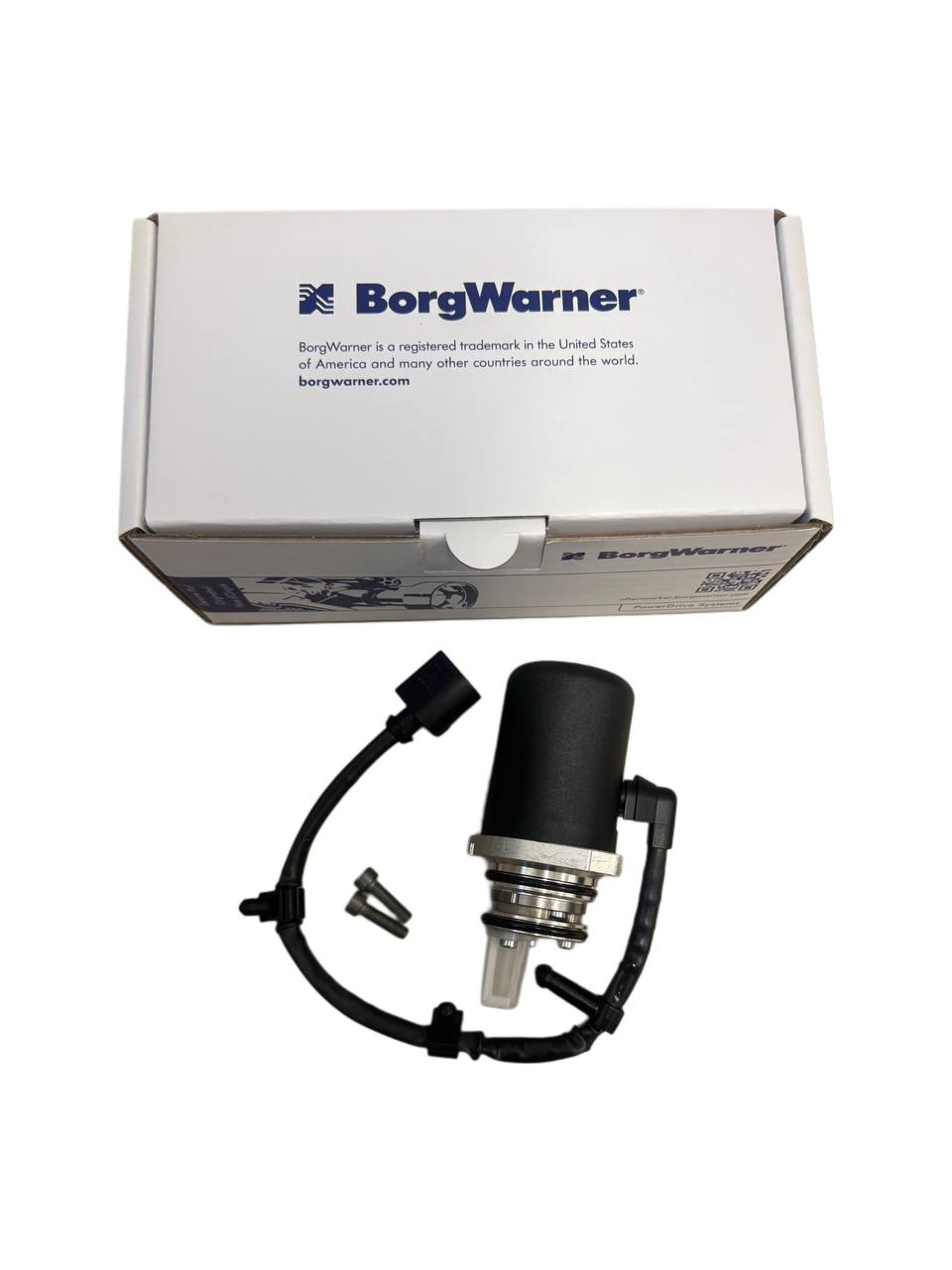

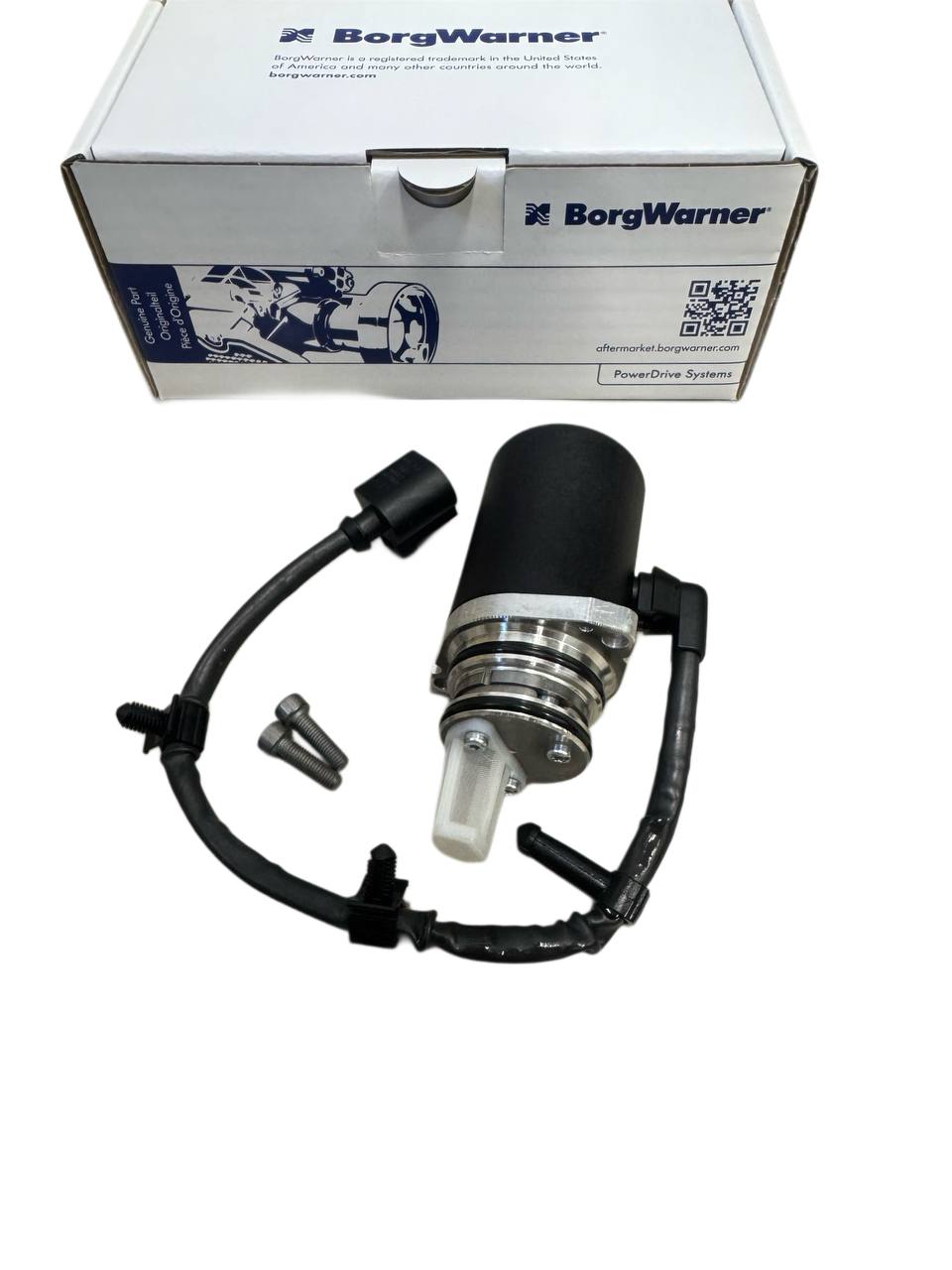

Package Includes Pump + 2 Screws
Warranty 12 Months
Tested & Ready for Installation This new original BorgWarner Haldex pump is a replacement for OEM reference 0AV598549A, designed to restore the hydraulic pressure needed for rear-wheel-drive engagement in Gen 2 Haldex systems.

OEM Part Numbers

Main OEM Number:

0AV598549A • 0AV 598 549A

Related Reference Numbers:

118613 • T118613 • 02W598549A

Always Verify Your Part Number Before placing an order, check the OEM number printed directly on your existing Haldex pump and confirm it matches 0AV598549A. If you are unsure about compatibility, contact us with your VIN number and we will help verify fitment.

Technical Specifications

System Type:
Haldex AWD 2nd Generation
Component:
Pre-Charge Pump / AWD Coupling Oil Pump
Application:
Volkswagen Group AWD vehicles with 2nd Gen Haldex coupling
Manufacturer:
Original BorgWarner
OEM Number:
0AV598549A
Reference Number:
118613 / T118613 / 02W598549A
Included:
1x pump + 2x screws
Part Condition:
New
Recommended Oil:
G055175A2
Warranty Period:
12 Months

Product Description

This new original BorgWarner hydraulic pump with part number 0AV598549A is designed for 2nd generation Haldex AWD systems used across a wide range of VAG vehicles. The pump creates the hydraulic pressure required to activate the AWD clutch pack and engage rear-wheel drive when traction is needed.

What This Pump Does

  • Builds hydraulic pressure for Haldex clutch engagement
  • Restores rear-wheel drive activation in AWD conditions
  • Supports correct operation of the AWD coupling and factory electronics
  • Helps eliminate traction loss caused by a weak, blocked, or failed pump
Service Recommendation When replacing a Gen 2 Haldex pump, we strongly recommend using fresh Haldex oil G055175A2 and replacing the filter 02D598574 at the same time for reliable AWD operation.

Vehicle Compatibility

The 0AV598549A pump is suitable for selected Volkswagen Group vehicles equipped with 2nd generation Haldex AWD. Always verify the exact OEM part number before ordering.

Suitable for the Following Vehicle Models

  • Audi A3 (2004 - 2008)
  • Audi S3 (2004 - 2008)
  • Audi TT (2007 - 2010)
  • Audi TT Coupe (2007 - 2010)
  • Audi TT Roadster (2007 - 2010)
  • SEAT Altea (2007 - 2010)
  • SEAT Leon 4x4 (2004 - 2008)
  • SEAT Alhambra 7M Facelift (2005 - 2010)
  • Škoda Octavia (2004 - 2008)
  • VW Passat (2006 - 2011)
  • VW Golf (2004 - 2009)
  • VW GTI (2006 - 2009)
  • VW R32 (2007 - 2009)
  • VW Rabbit (2007 - 2009)
  • VW Transporter T5 Prefacelift (2003 - 2009)
Not Sure About Compatibility? If you are unsure whether this pump fits your vehicle, send us your VIN number or the OEM number from your existing pump. We will help confirm compatibility before you order.

Common Fault Codes & Symptoms

A faulty Gen 2 Haldex pump can cause AWD engagement problems, loss of hydraulic pressure and driveline issues. Common pump-related symptoms and diagnostic signs include:

  • Loss of rear-wheel drive Rear axle does not engage correctly
  • Communication errors Faults stored in the AWD module
  • Dashboard warning lights Warning lamps may be illuminated together with AWD fault
  • Weak AWD operation Reduced torque transfer to the rear axle
  • Front wheels slipping excessively before rear axle activation
  • Reduced traction and stability in slippery conditions
  • Driveline issues caused by low hydraulic pressure in the Haldex coupling
  • Improper AWD response due to worn pump, contaminated oil or blocked filter
Diagnostic Tip If the AWD system does not engage properly and the vehicle shows rear-wheel-drive loss or AWD module communication faults, one common cause is reduced hydraulic pressure from a worn or failed Haldex pump. On Gen 2 systems, pump replacement together with fresh oil and filter service is a standard repair step.

Installation & Service Notes

Recommended Steps

  • Verify the exact OEM number on the original Haldex pump
  • Replace the hydraulic pump according to the correct repair procedure
  • Use fresh original 2nd generation Haldex oil G055175A2
  • Replace the filter 02D598574 during pump replacement
  • Check the AWD system for stored faults after installation
  • Verify proper rear axle engagement after service
Important Service Note A worn filter or contaminated oil can overload the new pump and shorten its service life. For reliable repair, replace the oil and filter together with the pump.

Why Haldex Pumps Fail

1. Internal Pump Wear

Gen 2 pumps can wear internally and lose the ability to create the oil pressure needed for clutch engagement.

2. Contaminated or Old Haldex Oil

Old oil increases wear inside the pump and reduces the performance of the AWD coupling.

3. Blocked Filter

A restricted filter reduces oil flow and can overload the pump, causing weak AWD operation or pump failure.

4. Ignored AWD Fault Symptoms

Continuing to drive with AWD warning symptoms can lead to worsening traction performance and additional drivetrain wear.

Quality Assurance & Warranty

12-Month Warranty: This new BorgWarner Haldex pump is supplied with a 12-month functionality warranty under normal operating conditions.

Warranty Coverage Includes:

  • Pump motor malfunction
  • Internal functional failure of the replacement unit
  • Operational defects under normal use

Warranty Exclusions:

  • Incorrect installation
  • Failure to replace contaminated oil or blocked filter
  • External wiring or control module faults
  • Physical damage or misuse

Questions or Need Help?

Our technical team is ready to assist with compatibility checks, installation guidance and product selection.

Contact

Important Purchase Information

  • Please verify this part fits your specific vehicle before placing an order
  • Photos are for illustrative purposes only
  • Worldwide shipping is available
  • If your country is not listed at checkout, contact us and the order can be processed manually
  • We recommend changing the Haldex oil and filter when replacing the pump
  • Please check if this product fits your car before purchase
