System Type
Haldex AWD 4th Generation
Condition
Used – Fully Functional
Manufacturer
Continental (Original OEM)
Warranty
12 Months
✓ Tested & Verified Working Unit
Each control unit is bench-tested prior to dispatch to verify full functionality. Used condition, fully operational and ready for direct installation into compatible AWD vehicles.
OEM Part Numbers
OEM Reference Numbers:
0BR907554A • 0BR598554A • HAP542 • 5WP33523-02 • 0BR 907 554 A
Also Compatible With:
0BR907554 • 0BR598554
⚠️ Always Verify Your Part Number
Before placing an order, check the part number printed directly on your existing Haldex control unit and confirm it corresponds to one of the reference numbers listed above. If you are unsure about compatibility, contact us – we are happy to assist.
Technical Specifications
System Type:
Haldex AWD 4th Generation
Component:
Rear Differential Control Unit (ECU)
Software Version:
SW 3016
Manufacturer:
Continental
Application:
VAG Group – VW, Audi, Škoda, SEAT
Part Condition:
Used – Tested & Verified Working
Warranty Period:
12 Months
Product Description

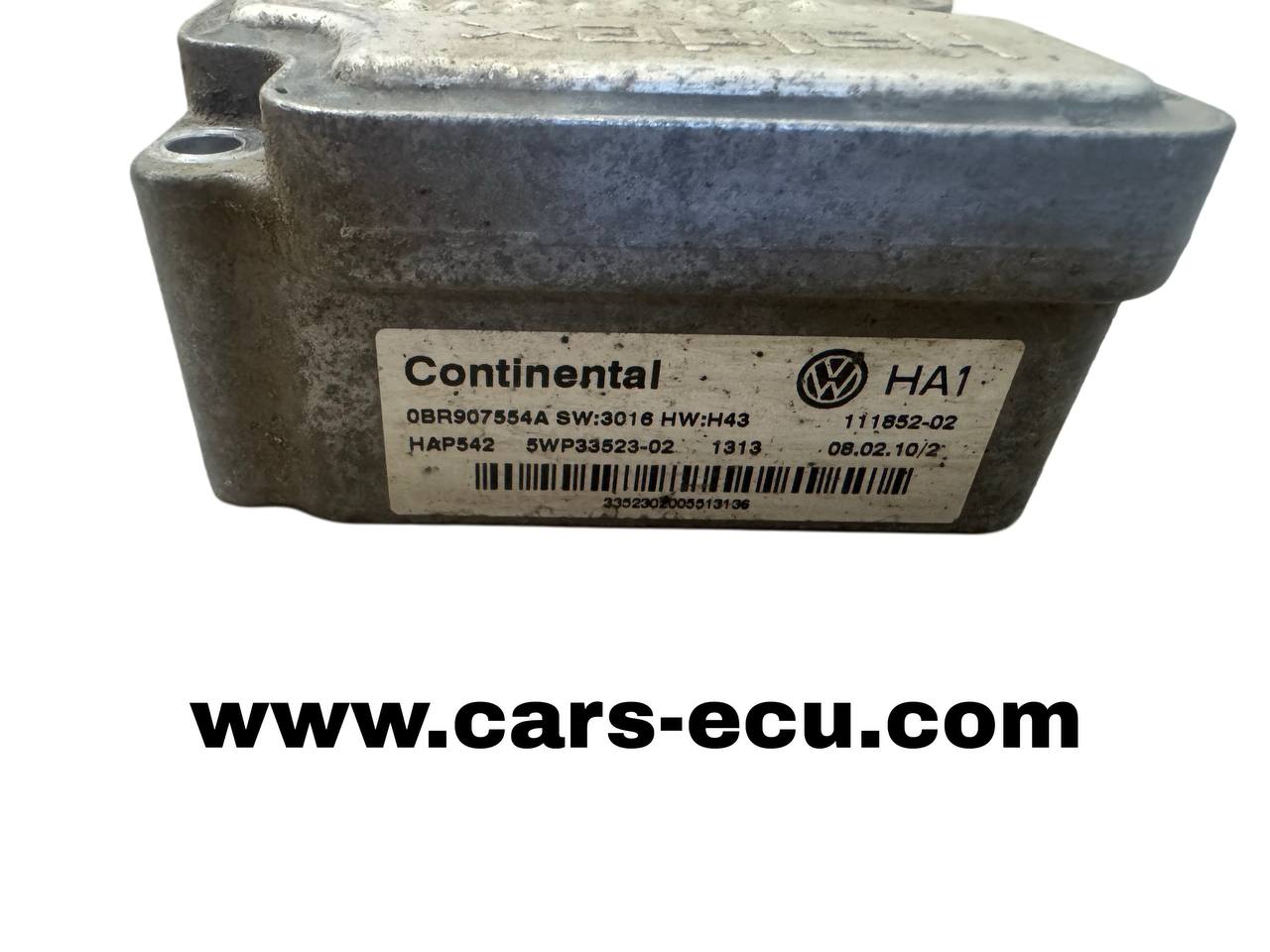

This is a genuine used original Continental Haldex 4th generation control unit with part number 0BR907554A. It functions as the electronic management module of the rear AWD coupling system, responsible for activating and regulating the rear differential clutch pack in response to traction demands and driving conditions.
What This Control Unit Does
- Monitors rotational speed differences between front and rear axles
- Controls the hydraulic pump pressure for rear differential clutch engagement
- Activates rear-wheel drive distribution automatically when traction is required
- Communicates with ABS, ESP and engine management modules
- Manages the N373 Haldex control valve for clutch pressure regulation
- Protects the coupling system from thermal overload
ℹ️ Coding & Programming Note
After installation, the control unit may require coding to the vehicle using VCDS or compatible VAG diagnostic equipment. Online coding support is included with your purchase – contact us at
[email protected]
Vehicle Compatibility
The 0BR907554A is compatible with the following VAG group vehicles equipped with Haldex 4th generation AWD systems. Always verify the part number on your existing unit:
Volkswagen
- Golf 4Motion
- Tiguan 4Motion
- Passat 4Motion
- Sharan 4Motion
Audi
- A3 Quattro
- S3 Quattro
- TT Quattro
Škoda
- Octavia 4x4
- Superb 4x4
- Yeti 4x4
SEAT
✓ Not Sure About Compatibility?
If you are unsure whether this unit fits your vehicle, send us your VIN number or the part number from your existing unit. We will confirm compatibility before you order.
Common Diagnostic Fault Codes
A defective Haldex 4th gen control unit commonly triggers one or more of the following fault codes:
-
01324 – AWD Control Module (J492): No Communications
-
00448 – Haldex Clutch Pump: Electrical Fault
-
02248 – Haldex Control Valve N373: Electrical Fault
-
01316 – ABS Control Module: Check DTC Memory – Intermittent
-
00003 – Control Module: Faulty
-
16347 – EEPROM: Memory Error
-
65535 – Control Module: Memory / Checksum Error
-
131599 (U0114) – AWD Control Unit: No Communication
ℹ️ Diagnostic Tip
A professional VAG-compatible scan tool (VCDS, ODIS, VCP) is required to read AWD module faults. Standard OBD2 readers typically cannot communicate with the Haldex AWD controller. Always scan module 22 directly for accurate fault diagnosis.
Installation & Calibration
Installation Steps
- Locate the Haldex control unit mounted on the rear differential / rear axle assembly
- Disconnect the electrical connector and remove all mounting fasteners
- Carefully remove the old control unit from the coupling housing
- Position the replacement unit and secure all mounting points
- Reconnect all electrical connectors and verify secure fitment
- Connect a VAG-compatible diagnostic tool and code the unit to the vehicle
- Clear all stored fault codes and perform a test drive
- Confirm AWD engagement using the diagnostic tool after the test drive
✓ Online Technical Support Included
If the module requires coding assistance after installation, our technical team is available to help. Reach us via the contact button below or at
[email protected]
Recommended Maintenance at Time of Installation
- Replace Haldex control valve N373 at the same time as fitting the new control unit
- Replace Haldex oil when replacing the control unit
- Inspect the wiring connector and harness for corrosion or damage
- Check AWD system fuses dedicated to the Haldex circuit
- Clear all stored diagnostic fault codes after installation and perform a test drive
Why Haldex Control Units Fail
1. Water Ingress & Corrosion
The control unit is located near the rear axle in an exposed position. Over time, moisture can penetrate the housing, corroding the internal circuit board and causing communication failures or complete loss of AWD function.
2. Power Supply Faults
The Gen 4 Haldex system relies on dedicated 12V supply lines protected by fuses. Blown fuses, corroded pins, or damaged wiring at the rear connector are a common cause of total AWD loss, often without an obvious dashboard warning.
3. Thermal Stress
Extended high-load driving or repeated AWD engagement can generate excessive heat that degrades solder joints and internal electronic components within the control unit over time.
4. Neglected Haldex Oil
Old or contaminated Haldex fluid leaves deposits that clog internal hydraulic passages and accelerate wear on the pump and N373 valve, leading to incorrect control unit readings and eventual AWD failure.
⚠️ Recommended Maintenance Intervals
- Replace Haldex oil every 40,000 – 60,000 km
- Inspect and replace N373 control valve at each oil service if worn
- Inspect rear wiring harness and connector block annually
- Scan AWD module 22 if any dashboard warning lights appear
Quality Assurance & Warranty
12-Month Warranty: This used Haldex control unit has been fully tested and is covered by a 12-month warranty against functional defects under normal operating conditions.
Warranty Coverage Includes:
- Electronic control unit malfunctions
- Communication failures with AWD, ABS or ESP modules
- N373 valve control circuit defects
- Internal calibration memory errors
Warranty Exclusions: Damage resulting from incorrect installation, incompatible vehicle fitment, external electrical faults, or physical damage during handling.
ℹ️ Recommendation: Replace Haldex Oil & N373 Valve When Fitting This Unit
Fresh Haldex fluid and a new N373 control valve protect the used control unit and ensure correct AWD operation.
Order Haldex Oil →
Questions or Need Help?
Our technical team is ready to assist with compatibility checks, installation guidance, and coding support.
Contact Us
Important Purchase Information
- Please verify this part fits your specific vehicle before placing an order
- Photos are for illustrative purposes only – the actual unit may differ in appearance
- Worldwide shipping available (if your country is not listed at checkout, contact us for personal processing)
- It is recommended to replace Haldex oil and N373 valve when replacing the control unit
- Online support is included in case the module requires coding after installation
