System Type
Haldex AWD 4th Generation
Condition
New Fully Functional
Manufacturer
Continental
Supplier Reference
HAP542 / 5WP33527-01
Software / Hardware
SW 4017 / HW H43
Warranty
24 Months
Tested & Verified Working Unit
New functional Haldex controller prepared to restore rear differential control, AWD engagement and stable communication with drivetrain electronics in compatible Gen 4 systems.
OEM Part Numbers
OEM Reference Numbers:
0BS907554D • 0BS598554D • HAP542 • 5WP33527-01 • SW 4017 • HW H43
Compatible ECU Numbers:
0BS907554 • 0BS907554A • 0BS907554B • 0BS907554C • 0BS907554D • 0BS598554 • 0BS598554A • 0BS598554B • 0BS598554C • 0BS598554D • 5WP33527 • 5WP33524-01 • 5WP33524-02 • 5WP33524-03
Always Verify Your Part Number
Before placing an order, check the OEM number printed directly on your original Haldex control unit. Vehicle model alone is not always enough to guarantee compatibility.
Technical Specifications
System Type:
Haldex AWD 4th Generation
Component:
Rear Differential Control Unit
Manufacturer:
Continental
Supplier Ref:
HAP542 / 5WP33527-01
Software Version:
SW 4017
Application:
VAG Group AWD vehicles with 4th generation Haldex
Part Condition:
New / Fully Functional
Product Description

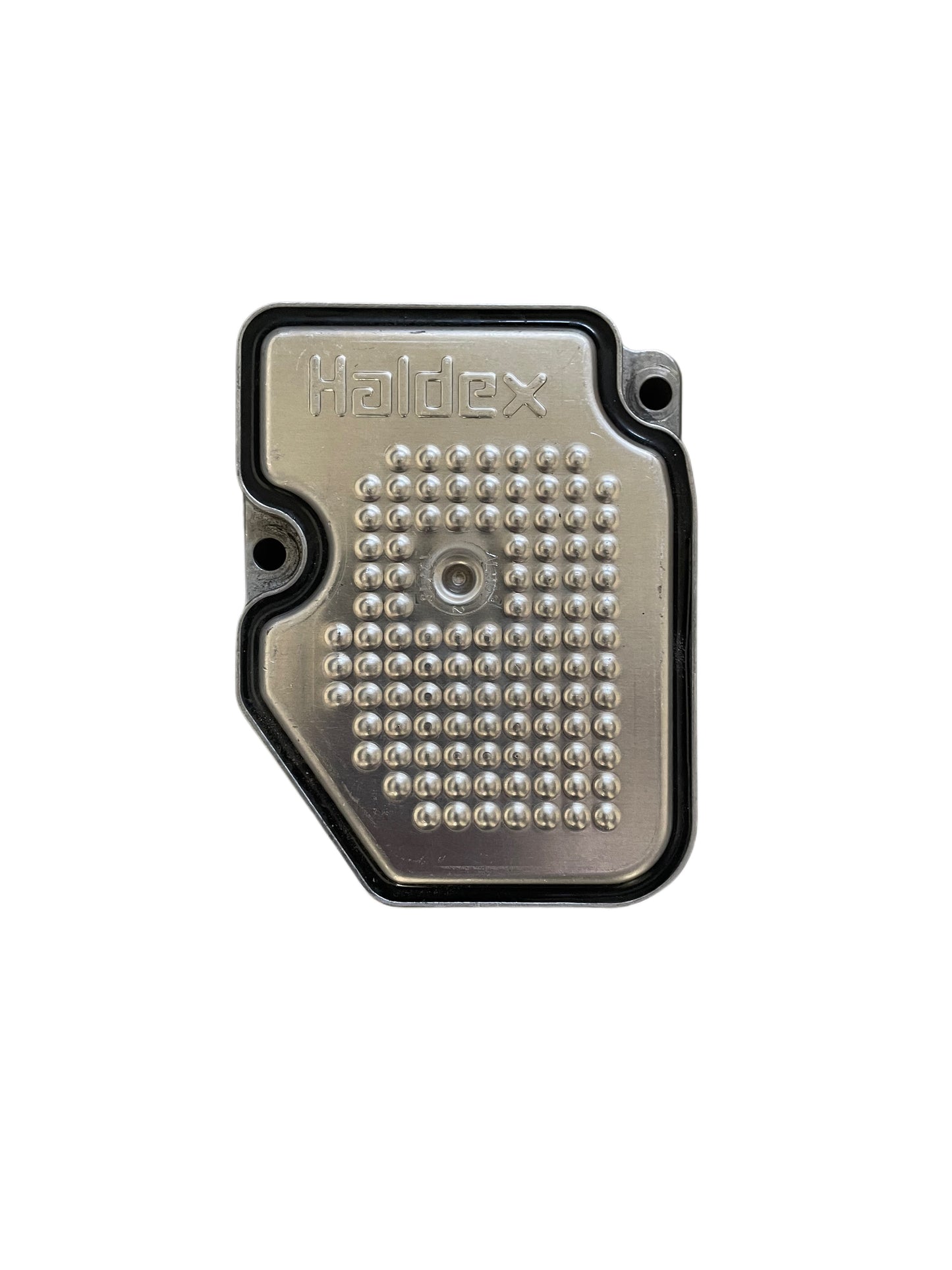

This is a new functional Continental Haldex control unit with OEM number 0BS907554D, designed for 4th generation Haldex AWD systems used across Volkswagen Group vehicles. The module manages rear axle engagement, controls clutch pressure through the hydraulic system and communicates with ABS, ESP and engine management electronics.
What This Control Unit Does
- Monitors speed difference between front and rear axles
- Controls hydraulic pump pressure for rear clutch engagement
- Activates rear-wheel drive automatically when traction is required
- Communicates with ABS, ESP and engine management modules
- Manages the Haldex control valve N373 for clutch pressure regulation
Typical failures of the original controller can cause AWD disengagement, communication errors, N373 valve faults, pump faults or ESP / ABS warning lights. This new replacement unit is intended to restore stable AWD operation in compatible vehicles.
Online Coding Support
Coding support is available if required after installation. If you need guidance with diagnostics or setup, contact us and we will help you choose the correct procedure for your vehicle.
Vehicle Compatibility
Typical applications for this Gen 4 Haldex control unit include the following vehicles. Always confirm the part number on your original module before ordering.
Volkswagen
- Passat B6 / B7 4Motion (2008–2014)
- Passat CC (2008–2017)
- Caddy III (2010–2015)
- Tiguan
- Sharan
Audi
- Q3 (2011–2014)
- RS Q3 (pre-Apr 2013 / Jan 2015 as listed by source)
- TT (2008–2012)
Škoda
SEAT
Not Sure About Compatibility?
Send us your VIN number or your original ECU part number and we will help verify fitment before you order.
Common Symptoms of a Faulty Module
A faulty Haldex control unit can trigger fault codes, communication problems and complete loss of rear-wheel engagement. Typical symptoms include:
-
00003 – Control Module Defective
-
00448 – Haldex Clutch Pump Fault
-
01324 – All Wheel Drive Control Module: No Communication
-
02248 – Clutch Control Valve N373 Fault
-
16347 – EEPROM / Internal Controller Fault
-
65535 – Internal Control Module Memory Error
-
N373 – Haldex clutch control valve problem
- ESP / ABS warning lights on the dashboard
- AWD / 4x4 system malfunction or rear-wheel drive not engaging
Installation
Installation Notes
- Locate the Haldex control unit on the rear differential / rear axle assembly
- Disconnect the electrical connector and remove the old module
- Install the replacement unit and secure all mounting points properly
- Reconnect all electrical connectors and verify a secure fit
- Clear fault codes and carry out coding or adaptation if required
- Perform a test drive and confirm proper AWD engagement
Recommended Service Items
- Check or replace the Haldex control valve N373 if faulty
- Inspect the rear wiring connector and harness for corrosion or damage
- Check Haldex oil condition and service if necessary
- Inspect the clutch pump before final installation
Online Technical Support Included
If the control unit requires coding assistance after installation, our technical team is available to help. Reach us using the contact button below or at
[email protected]
Why Haldex Control Units Fail
1. Water Ingress & Sealing Failure
Moisture and damaged sealing can affect the control unit housing and internal electronics, leading to corrosion, unstable communication and complete AWD malfunction.
2. Valve or Pump Related Faults
Failure of the Haldex control valve N373 or clutch pump can overload the AWD system and trigger recurring module-related diagnostic errors, engagement issues or loss of rear-wheel drive.
3. Internal Electronic Failure
EEPROM faults, internal memory errors and circuit-board wear can cause intermittent operation, no communication faults or complete loss of rear differential control.
4. Wiring or Power Supply Problems
Damaged wiring, poor terminal contact or unstable power supply can interrupt module operation and create misleading communication or actuator fault codes.
Warranty
24-Month Warranty: This new Haldex control unit is supplied with a 24-month warranty under normal operating conditions.
Warranty Coverage Includes:
- Internal control unit malfunction
- Communication failures caused by the module itself
- Faults related to internal memory or controller operation
Warranty Exclusions:
- Incorrect installation or incompatible vehicle fitment
- External wiring, valve, pump or drivetrain faults
- Physical damage, water damage after installation or mishandling
Questions or Need Help?
Our technical team is ready to assist with compatibility checks, installation guidance and coding support.
Contact Us
Important Purchase Information
- Please verify the part number before ordering
- Images are for illustrative purposes only
- Worldwide shipping is available
- Replacing Haldex oil and checking valve N373 is recommended when fitting a replacement ECU
- Online coding support is available if required after installation
