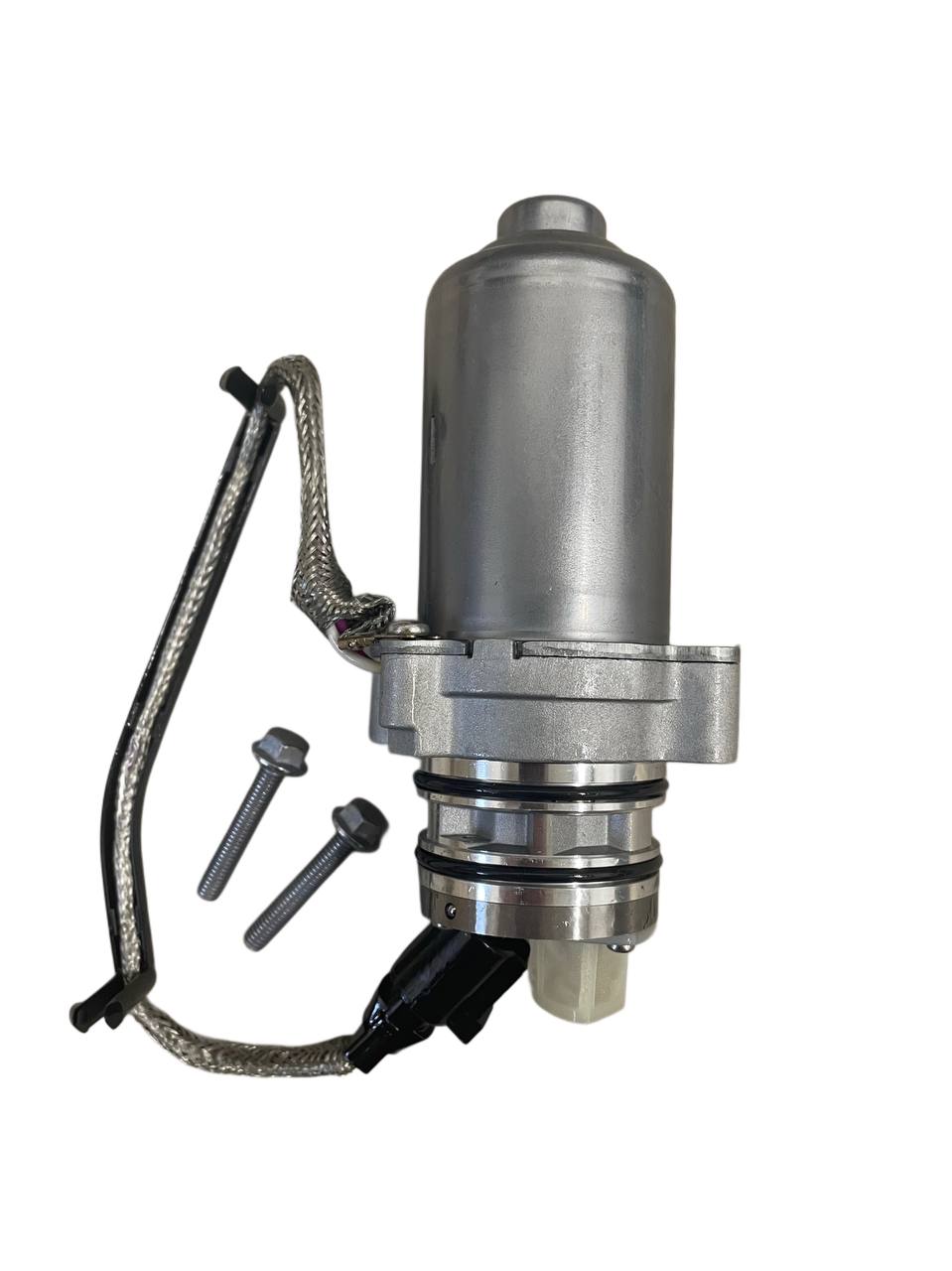

• Front view of brand‑new Haldex pre‑charge pump 0CQ598549 5.gen.

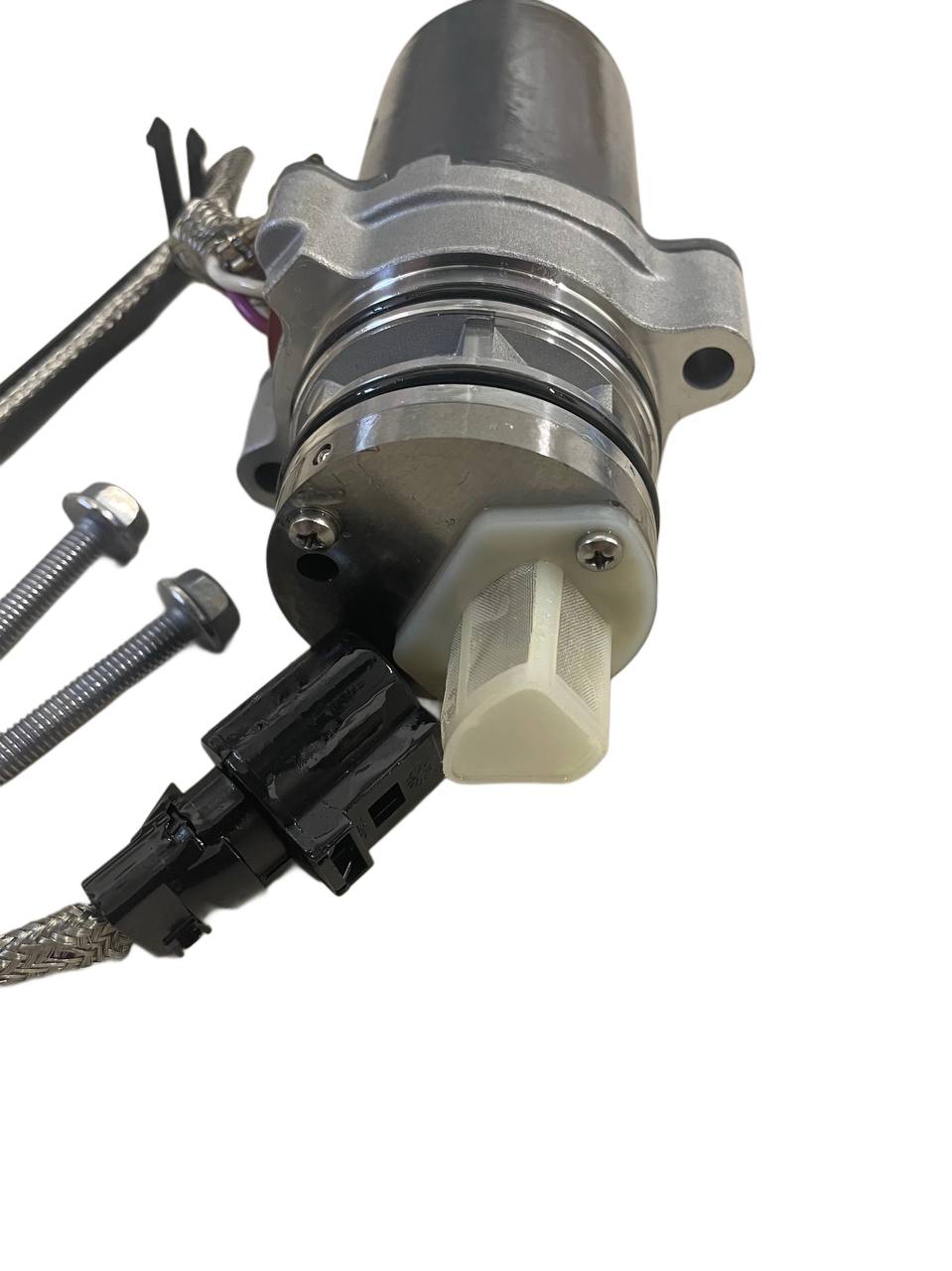

  • Pressure Haldex pump 5.gen.

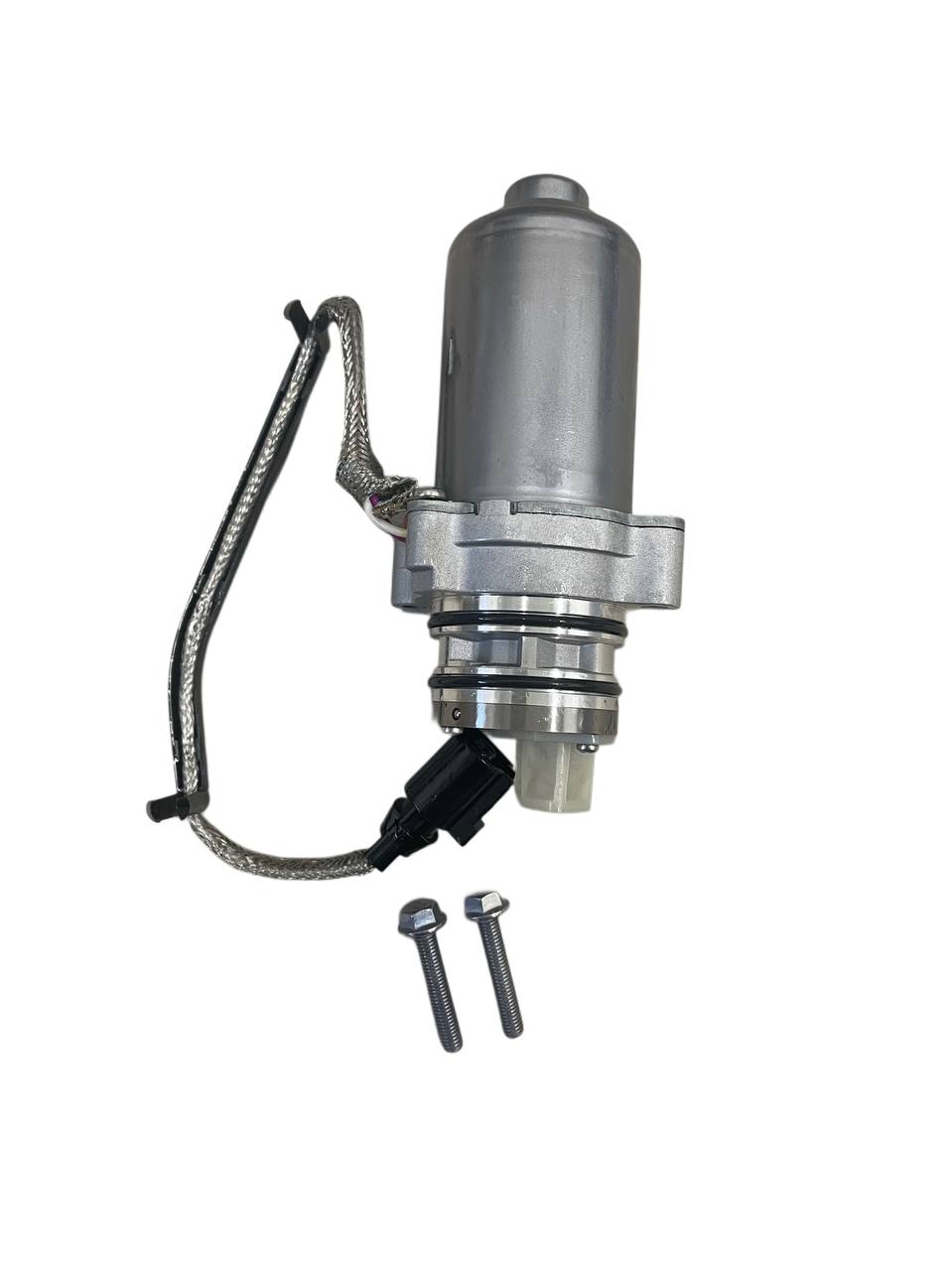

  • Preload Haldex pump 5 with screws
1 3

Aftermarket

0CQ598549 Haldex preload pump Gen 5 New VW Skoda Audi Seat

0CQ598549 Haldex preload pump Gen 5 New VW Skoda Audi Seat

€99,00 EUR
€99,00 EUR
Sale Sold out
  • Warranty
  • Online Support
  • Express Shipping
0CQ598549 Haldex Pre-Charge Pump Gen 5 | New

0CQ598549 Haldex Pre-Charge Pump Gen 5 New

Part Number: 0CQ598549

New aftermarket replacement pre-charge pump for 5th generation Haldex AWD systems in Volkswagen Group vehicles

System Type Haldex AWD 5th Generation
Condition New Fully Functional
Manufacturer Aftermarket
Component Pre-Charge Pump
Package Includes Pump + 2 Screws
Warranty 12 Months
Tested & Ready for Installation This new Haldex pump is a replacement for OEM reference 0CQ598549, designed to restore the hydraulic pressure needed for rear-wheel-drive engagement in Gen 5 Haldex systems.

OEM Part Numbers

Main OEM Number:

0CQ598549 • 0CQ 598 549

Related Reference Numbers:

2002773

Always Verify Your Part Number Before placing an order, check the OEM number printed directly on your existing Haldex pump and confirm it matches 0CQ598549. If you are unsure about compatibility, contact us with your VIN number and we will help verify fitment.

Technical Specifications

System Type:
Haldex AWD 5th Generation
Component:
Pre-Charge Pump / AWD Coupling Oil Pump
Application:
Volkswagen Group AWD vehicles with 5th Gen Haldex coupling
Manufacturer:
Aftermarket replacement for OEM 0CQ598549
OEM Number:
0CQ598549
Reference Number:
2002773
Included:
1x pump + 2x screws
Part Condition:
New
Warranty Period:
12 Months

Product Description

This new aftermarket Haldex pre-charge pump with part number 0CQ598549 is designed for 5th generation Haldex AWD systems used across a wide range of VAG vehicles. The pump creates the hydraulic pressure required to activate the AWD clutch pack and engage rear-wheel drive when traction is needed.

What This Pump Does

  • Builds hydraulic pressure for Haldex clutch engagement
  • Restores rear-wheel drive activation in AWD conditions
  • Supports correct operation of the AWD coupling and factory electronics
  • Helps eliminate traction loss caused by a weak, blocked, or failed pump
Service Recommendation When replacing a Gen 5 Haldex pump, we strongly recommend using fresh Haldex oil G060175A2 and carrying out AWD basic settings after installation.

Vehicle Compatibility

The 0CQ598549 pump is suitable for selected Volkswagen Group vehicles equipped with 5th generation Haldex AWD. Always verify the exact OEM part number before ordering.

Suitable for the Following Vehicle Models

  • Audi A1 GB (2018 - )
  • Audi A1 / S1 8X (2014 - 2018)
  • Audi A3 / S3 / RS3 8V (2012 - )
  • Audi R8 4S (2015 - )
  • Audi TT 8S (2014 - )
  • Audi Q3 1 (2011 - 2018)
  • Audi Q3 1 (2018 - )
  • VW Arteon (2017 - )
  • VW Caddy 2K (2015 - )
  • VW Golf 7 (2014 - 2019)
  • VW Jetta 7 (2018 - )
  • VW Passat B8 (2014 - )
  • VW T-Roc (2017 - )
  • VW Tiguan (05/11/2013 - 2021)
  • VW T6 (2015 - )
  • Škoda Karoq (2017 - )
  • Škoda Kodiaq (2016 - )
  • Škoda Octavia 3 (2012 - )
  • Škoda Superb 3 (2015 - )
  • Škoda Yeti (2012 - 2017)
  • SEAT Tarraco (2019 - )
  • SEAT Alhambra 7N (2013 - )
  • SEAT Ateca (2016 - )
  • SEAT Leon 5F (2012 - )
Not Sure About Compatibility? If you are unsure whether this pump fits your vehicle, send us your VIN number or the OEM number from your existing pump. We will help confirm compatibility before you order.

Common Fault Codes & Symptoms

A faulty Gen 5 Haldex pump can cause AWD engagement problems, pump pressure faults, and traction issues. Common pump-related symptoms and diagnostic codes include:

  • C111204 Haldex clutch pump faulty
  • AWD does not work Rear wheels do not engage correctly
  • EPC warning lamp Warning light may be illuminated together with AWD fault
  • DTCs related to pump pressure Pressure build-up faults in the AWD module
  • Rear-wheel drive not engaging when traction is needed
  • Front wheels slipping excessively before rear axle activation
  • Reduced stability in slippery conditions
  • Increased tire wear caused by improper AWD operation
Diagnostic Tip If the AWD system does not work and the all-wheel-drive control module stores C111204, one common cause is an internal leak or failure inside the hydraulic pump. On VAG Gen 5 systems, pump replacement, fresh Haldex oil, and AWD basic settings are standard service steps.

Installation & Service Notes

Recommended Steps

  • Verify the exact OEM number on the original Haldex pump
  • Replace the hydraulic pump according to the factory repair procedure
  • Use fresh high performance oil for Haldex coupling G060175A2
  • Make sure the Haldex coupling and final drive oils are not confused
  • Perform AWD basic settings after pump replacement
  • Clear stored AWD fault codes after installation
Important Service Note The final drive and the Haldex coupling use separate oil circuits. Use the correct Haldex oil when replacing the pump and complete the AWD basic settings after service.

Why Haldex Pumps Fail

1. Internal Hydraulic Leak

Gen 5 pumps can fail internally and lose the ability to create the oil pressure needed for clutch engagement.

2. Contaminated or Old Haldex Oil

Old oil increases wear inside the pump and reduces the performance of the AWD coupling.

3. Pressure Build-Up Problems

If the pump cannot build proper hydraulic pressure, the AWD clutch pack will not engage correctly and traction performance will drop.

4. Ignored AWD Fault Codes

Continuing to drive with AWD fault codes or warning lights can lead to worsening AWD performance and additional system wear.

Quality Assurance & Warranty

12-Month Warranty: This new Haldex pump is supplied with a 12-month functionality warranty under normal operating conditions.

Warranty Coverage Includes:

  • Pump motor malfunction
  • Internal functional failure of the replacement unit
  • Operational defects under normal use

Warranty Exclusions:

  • Incorrect installation
  • Use of incorrect oil or failure to perform basic settings
  • External wiring or control module faults
  • Physical damage or misuse

Questions or Need Help?

Our technical team is ready to assist with compatibility checks, installation guidance and product selection.

Contact

Important Purchase Information

  • Please verify this part fits your specific vehicle before placing an order
  • Photos are for illustrative purposes only
  • Worldwide shipping is available
  • If your country is not listed at checkout, contact us and the order can be processed manually
  • We recommend changing the Haldex oil when replacing the pump
  • Please check if this product fits your car before purchase
